12002500

Active

Bopla Enclosures

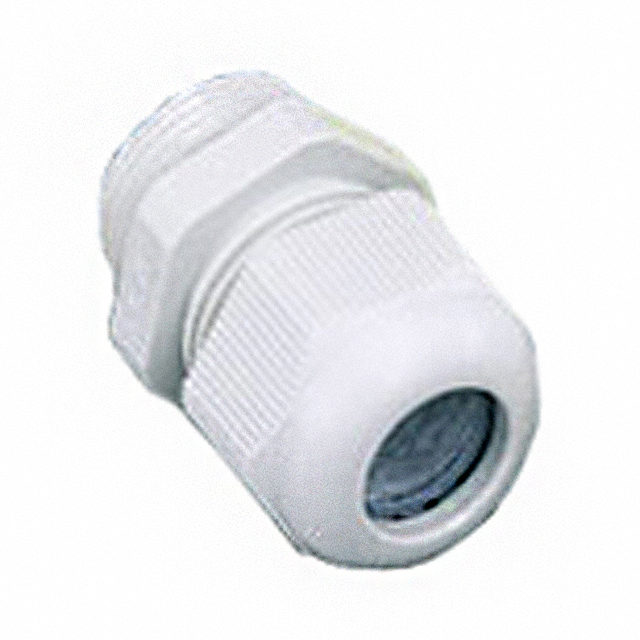

CABLE GLAND 15-21MM M32 POLYAMID

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

12002500

Active

Bopla Enclosures

CABLE GLAND 15-21MM M32 POLYAMID

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	12002500

Color	Gray
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.827 in
Outside Cable Diameter (Min) [Min] [diameter]	0.591 "
Outside Cable Diameter (Min) [Min] [diameter]	15 mm
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	M32x1.5
Type	Cable Gland

12002 Series

Part	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Type	Material	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Ingress Protection	Thread Length	Thread Length	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Bopla Enclosures 12002600	M40x1.5	19 mm	0.748 in	Gray	Cable Gland	Polyamide (PA) Nylon	100 °C	-20 C	28 mm	1.102 in	IP68 - Dust Tight Waterproof	10 mm	0.394 in
Bopla Enclosures 12002103	M12x1.5	3 mm	0.118 in	Gray	Cable Gland	Polyamide (PA) Nylon	100 °C	-20 C		0.256 "	IP68 - Dust Tight Waterproof	8 mm	0.315 in	Strain Relief	6.5 mm
Bopla Enclosures 12002401	M25x1.5		0.512 in	Gray	Cable Gland	Polyamide (PA) Nylon	100 °C	-20 C		0.709 in	IP68 - Dust Tight Waterproof	8 mm	0.315 in	Strain Relief	18.01 mm	13 mm
Bopla Enclosures 12002400	M25x1.5	11 mm	0.433 in	Gray	Cable Gland	Polyamide (PA) Nylon	100 °C	-20 C		0.669 in	IP68 - Dust Tight Waterproof	8 mm	0.315 in		16.99 mm
Bopla Enclosures 12002200	M16x1.5			Gray	Cable Gland	Polyamide (PA) Nylon	100 °C	-20 C		0.394 "	IP68 - Dust Tight Waterproof	8 mm	0.315 in		10 mm		5 mm	0.197 in
Bopla Enclosures 12002300	M20x1.5	8 mm	0.315 in	Gray	Cable Gland	Polyamide (PA) Nylon	100 °C	-20 C		0.512 in	IP68 - Dust Tight Waterproof	8 mm	0.315 in		13 mm
Bopla Enclosures 12002500	M32x1.5	15 mm	0.591 "	Gray	Cable Gland	Polyamide (PA) Nylon	100 °C	-20 C		0.827 in	IP68 - Dust Tight Waterproof	10 mm	0.394 in		21 mm
Bopla Enclosures 12002210	M16x1.5			Gray	Cable Gland	Polyamide (PA) Nylon	100 °C	-20 C		0.394 "	IP68 - Dust Tight Waterproof	8 mm	0.315 in	Strain Relief	10 mm		5 mm	0.197 in
Bopla Enclosures 12002100	M12x1.5	3 mm	0.118 in	Gray	Cable Gland	Polyamide (PA) Nylon	100 °C	-20 C		0.236 in	IP68 - Dust Tight Waterproof	8 mm	0.315 in		6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 7.08
		10	$ 5.43
		25	$ 4.90
		50	$ 4.54
		100	$ 4.21
		300	$ 3.76
		500	$ 3.57
		1000	$ 3.33
		2500	$ 3.06

Description

General part information

12002 Series

Cable Gland Polyamide (PA), Nylon M32x1.5 Gray
