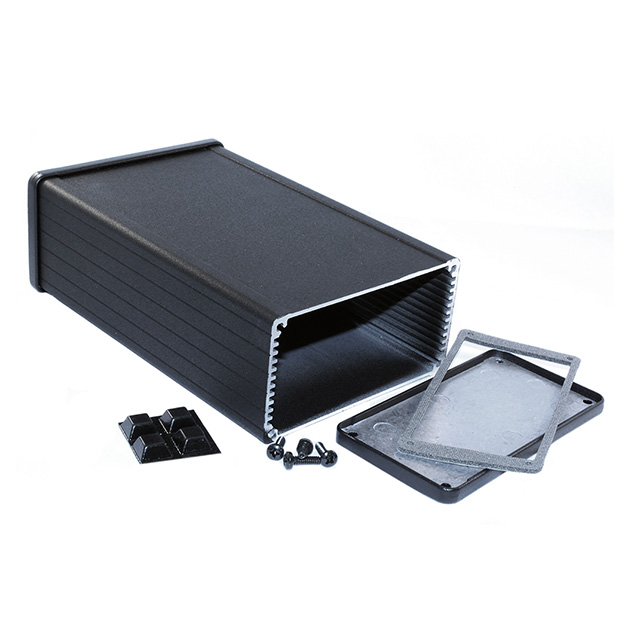

1457N1601EBK

Active

Hammond Manufacturing

BLACK ALUMINUM WALL MOUNT EXTRUDED ENCLOSURE

Deep-Dive with AI

Search across all available documentation for this part.

Documents1457J1201 Drawing

1457N1601EBK

Active

Hammond Manufacturing

BLACK ALUMINUM WALL MOUNT EXTRUDED ENCLOSURE

Deep-Dive with AI

Documents1457J1201 Drawing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1457N1601EBK

Area (L x W)	29 in˛
Area (L x W)	187 cm˛
Color	Black
Container Type	Box
Design	End Panel(s)
Features	Card Guides, EMI Shielded, Watertight
Height [z]	58.62 mm
Height [z]	2.308 in
Material	Aluminum
Ratings	IP54
Size / Dimension [x]	173 mm
Size / Dimension [x]	6.811 in
Size / Dimension [y]	4.252 in
Size / Dimension [y]	108 mm
Thickness	1.52 mm
Thickness	0.06 in
Weight	362.87 g
Weight	0.8 lb

1457 Series

...

Part	Container Type	Height [z]	Height [z]	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material	Area (L x W)	Area (L x W)	Ratings	Color	Weight	Weight	Design	Thickness	Thickness	For Use With/Related Products	Type	Size / Dimension [x]	Size / Dimension [y]
Hammond Manufacturing 1457K1602E	Box	46.99 mm	1.85 in	Card Guides EMI Shielded Mounting Flange Watertight	3.418 in	170 mm	6.693 "	86.82 mm	Aluminum	22.9 in²	148 cm²	IP54	Natural	0.6 lb	272.16 g	End Panel(s)	1.52 mm	0.06 in
Hammond Manufacturing 1457N1601EBK	Box	58.62 mm	2.308 in	Card Guides EMI Shielded Watertight	4.252 in	173 mm	6.811 in	108 mm	Aluminum	29 in˛	187 cm˛	IP54	Black	0.8 lb	362.87 g	End Panel(s)	1.52 mm	0.06 in
Hammond Manufacturing 1457C1202BK	Box	33.91 mm	1.335 in	Card Guides Mounting Flange Watertight	2.441 in	127 mm	5 in	62 mm	Aluminum	12.3 in˛	79 cm˛	IP65	Black			End Panel(s)	1.52 mm	0.06 in
Hammond Manufacturing 1457KEPF-10				EMI Gasket IP54	1.85 "	86.89 mm	3.421 "	47 mm	Aluminum				Black						1457 Series	Panel End
Hammond Manufacturing 1457J1601E	Box	31.43 mm	1.237 in	Card Guides EMI Shielded Watertight	3.424 in	171.15 mm	6.738 "	86.96 mm	Aluminum	23.1 in²	149 cm²	IP54	Natural			End Panel(s)	1.52 mm	0.06 in
Hammond Manufacturing 1457K1202BK	Box	46.91 mm	1.847 "	Card Guides Mounting Flange Watertight	3.418 in	130 mm	5.118 in	86.82 mm	Aluminum	17.5 in˛	113 cm˛	IP65	Black			End Panel(s)	1.52 mm	0.06 in
Hammond Manufacturing 1457NEPF				EMI Gasket IP54		108 mm		58.61 mm	Aluminum				Black						1457 Series	Panel End	4.252 in	2.308 in
Hammond Manufacturing 1457C802BK	Box	33.91 mm	1.335 in	Card Guides Mounting Flange Watertight	2.441 in	89.48 mm	3.523 "	62 mm	Aluminum	8.6 in˛	55.5 cm˛	IP65	Black			End Panel(s)	1.52 mm	0.06 in
Hammond Manufacturing 1457K1201	Box	47.12 mm	1.855 in	Card Guides Watertight	3.425 in	130 mm	5.118 in	87 mm	Aluminum	17.5 in˛	113 cm˛	IP65	Natural			End Panel(s)	1.52 mm	0.06 in
Hammond Manufacturing 1457J1201BK	Box	31.43 mm	1.237 in	Card Guides Watertight	3.424 in	131.15 mm	5.163 "	86.96 mm	Aluminum	17.6 in²	114 cm²	IP65	Black			End Panel(s)	1.52 mm	0.06 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 55.27
		5	$ 51.81
		10	$ 48.36
		25	$ 47.50
		50	$ 46.63
		100	$ 45.94

Description

General part information

1457 Series

Box Aluminum Black End Panel(s) 6.811" L x 4.252" W (173.00mm x 108.00mm) X 2.308" (58.62mm)

Documents

Technical documentation and resources

1457J1201 Drawing

Datasheet
