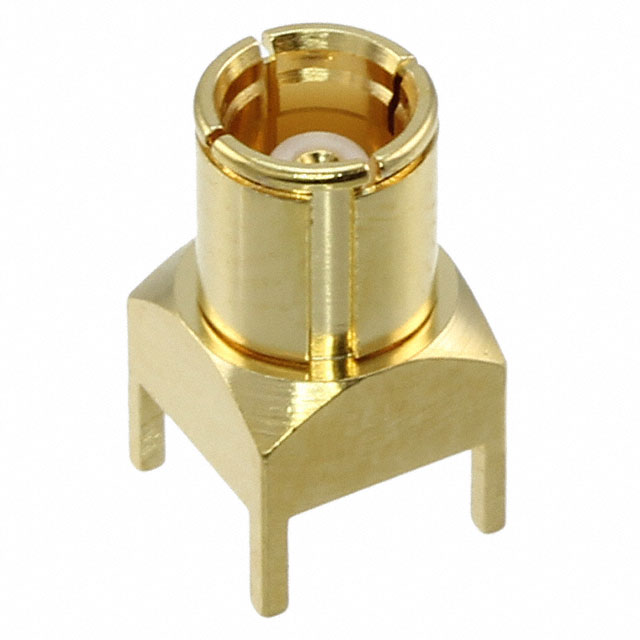

UM-PR-PC-1(40)

Hirose Electric USA, Inc.

CONN UMC PLUG STR 50 OHM PCB

Search across all available documentation for this part.

Hirose Electric USA, Inc.

CONN UMC PLUG STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	UM-PR-PC-1(40)

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	U.FL (UMCC)
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	1 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Center Contact Material	Fastening Type	Housing Color	Shield Termination	Body Material	Connector Style	Impedance	Contact Termination	Number of Ports	Mounting Type	Center Contact Plating	Mating Cycles	Frequency - Max [Max]	Connector Type	Dielectric Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]
Hirose Electric USA, Inc. UM-PR-PC(41)	Beryllium Copper	Snap-On	Gold	Solder	Brass	U.FL (UMCC)	50 Ohms	Solder	1	Through Hole	Gold	500	3 GHz	Female Socket Plug	Polytetrafluoroethylene (PTFE)	Gold	-30 ░C	85 °C
Hirose Electric USA, Inc. UM-PR-PC-1(40)	Brass	Snap-On	Gold	Solder	Brass	U.FL (UMCC)	50 Ohms	Solder	1	Through Hole	Gold	1000	1 GHz	Female Socket Plug	Polytetrafluoroethylene (PTFE)	Gold	-55 °C	85 °C
Hirose Electric USA, Inc. UM-PR-PC(40)	Beryllium Copper	Snap-On	Gold	Solder	Brass	U.FL (UMCC)	50 Ohms	Solder	1	Through Hole	Gold	500	3 GHz	Female Socket Plug	Polytetrafluoroethylene (PTFE)	Gold	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

U.FL (UMCC) Connector Plug, Female Socket 50 Ohms Through Hole Solder
