ANR80-UL-25A

Active

OptiFuse

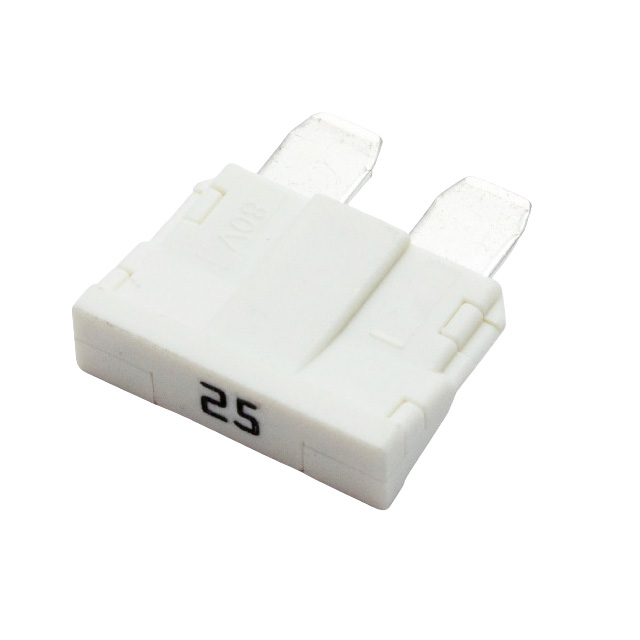

FUSE AUTO 25A 80VDC BLADE ATO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANR80-UL-25A

Active

OptiFuse

FUSE AUTO 25A 80VDC BLADE ATO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANR80-UL-25A

Approval Agency	cURus, UL 248
Breaking Capacity @ Rated Voltage	1 kA
Color	Clear
Current Rating (Amps)	25 A
DC Cold Resistance	0.0019 Ohms
Fuse Type	Automotive
Melting I²t	813
Mounting Type	Requires Holder
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.531 in
Size / Dimension [z]	13.5 mm
Voltage Rating - DC	80 V

ANR80 Series

Part	Voltage Rating - DC	Fuse Type	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Color	Package / Case	Breaking Capacity @ Rated Voltage	Approval Agency	Current Rating (Amps)	Response Time	Melting I²t	DC Cold Resistance	Melting I˛t
OptiFuse ANR80-UL-16A	80 V	Automotive	Requires Holder	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Light Green	ATC ATO Blade	1 kA	cURus UL 248	16 A	Fast Blow
OptiFuse ANR80-UL-20A	80 V	Automotive	Requires Holder	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Yellow	ATC ATO Blade	1 kA	cURus UL 248	20 A	Fast Blow	360	0.003 Ohms
OptiFuse ANR80-UL-25A	80 V	Automotive	Requires Holder	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Clear	ATC ATO Blade	1 kA	cURus UL 248	25 A	Fast Blow	813	0.0019 Ohms
OptiFuse ANR80-UL-7.5A	80 V	Automotive	Requires Holder	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Brown	ATC ATO Blade	1 kA	cURus UL 248	7.5 A	Fast Blow	73.1	0.009 Ohms
OptiFuse ANR80-UL-30A	80 V	Automotive	Requires Holder	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Green	ATC ATO Blade	1 kA	cURus UL 248	30 A	Fast Blow	1530	0.00165 Ohms
OptiFuse ANR80-10A	80 V	Automotive	Requires Holder	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Red	ATC ATO Blade	1 kA		10 A	Fast Blow		0.0065 Ohms	210
OptiFuse ANR80-UL-500MA	80 V	Automotive	Requires Holder	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Dark Blue	ATC ATO Blade	1 kA	cURus UL 248	0.5 A	Fast Blow	0.3	0.29 Ohms
OptiFuse ANR80-UL-2A	80 V	Automotive	Requires Holder	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Gray	ATC ATO Blade	1 kA	cURus UL 248	2 A	Fast Blow	9.6	0.043 Ohms
OptiFuse ANR80-UL-5A	80 V	Automotive	Requires Holder	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Tan	ATC ATO Blade	1 kA	cURus UL 248	5 A	Fast Blow	62.5	16 mOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.38
		10	$ 5.13
		25	$ 4.74
		50	$ 4.10
		100	$ 3.84
		250	$ 3.59
		500	$ 3.33
		1000	$ 3.20

Description

General part information

ANR80 Series

25 A AC 80 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
