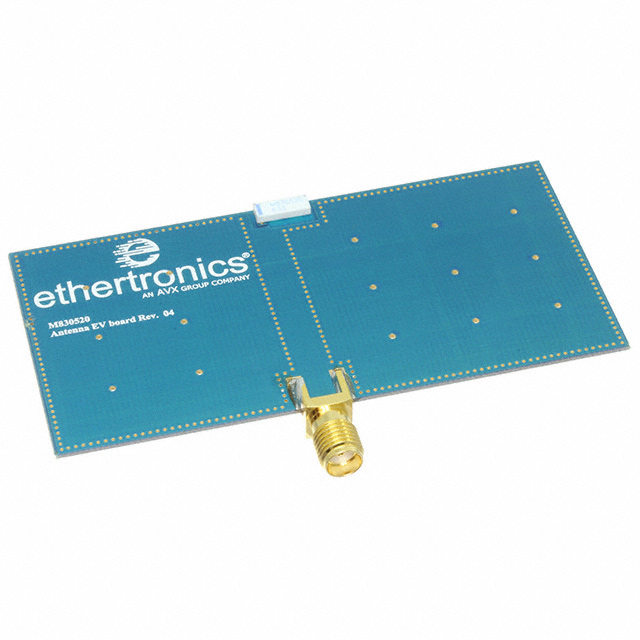

M830520-01
ActiveKyocera AVX
RF ANT 2.4GHZ/5.35GHZ CHIP SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M830520-01
ActiveKyocera AVX
RF ANT 2.4GHZ/5.35GHZ CHIP SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M830520-01 |
|---|---|
| Antenna Type | Chip |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency (Center/Band) | 5.35 GHz, 2.4 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.5 GHz, 5.8 GHz |
| Frequency Range [Min] | 4.9 GHz, 2.4 GHz |
| Height (Max) [Max] | 0.051 " |
| Height (Max) [Max] | 1.3 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 500 mW |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
| VSWR | 2.6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.30 | |
| 10 | $ 24.26 | |||
| 25 | $ 23.17 | |||
| 100 | $ 20.71 | |||
| 250 | $ 19.76 | |||
| 500 | $ 18.81 | |||
Description
General part information
M830520 Series
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Chip Solder Surface Mount
