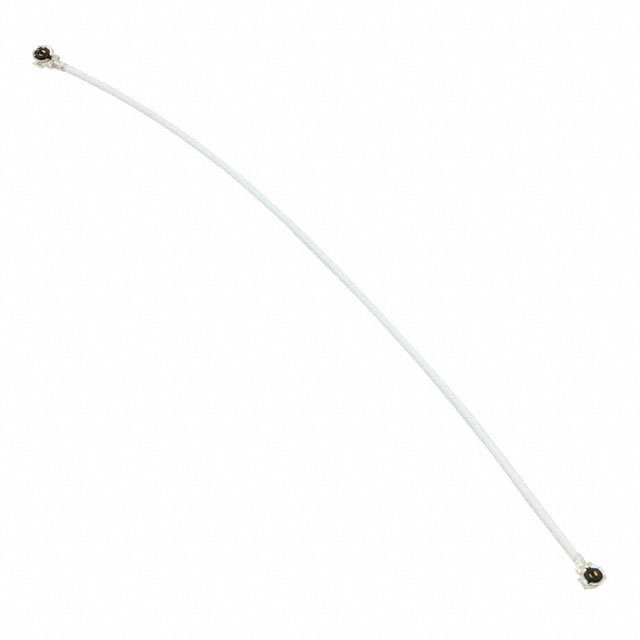

NFL-2LPHF6-04N1TV-A-100
LTBHirose Electric USA, Inc.
CBL ASSY U.FL PLUG-PLUG 3.937"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NFL-2LPHF6-04N1TV-A-100
LTBHirose Electric USA, Inc.
CBL ASSY U.FL PLUG-PLUG 3.937"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NFL-2LPHF6-04N1TV-A-100 |
|---|---|
| 1st Connector | U.FL (UMCC) Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | U.FL (UMCC) Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Coaxial Cable |
| Cable Type [diameter] | 0.81 mm |
| Color | White |
| Frequency - Max [Max] | 6000 MHz |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | U.FL (UMCC) to U.FL (UMCC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NFL-2LPHF Series
Cable Assembly Coaxial U.FL (UMCC) to U.FL (UMCC) 0.81mm OD Coaxial Cable 3.937" (100.00mm)
