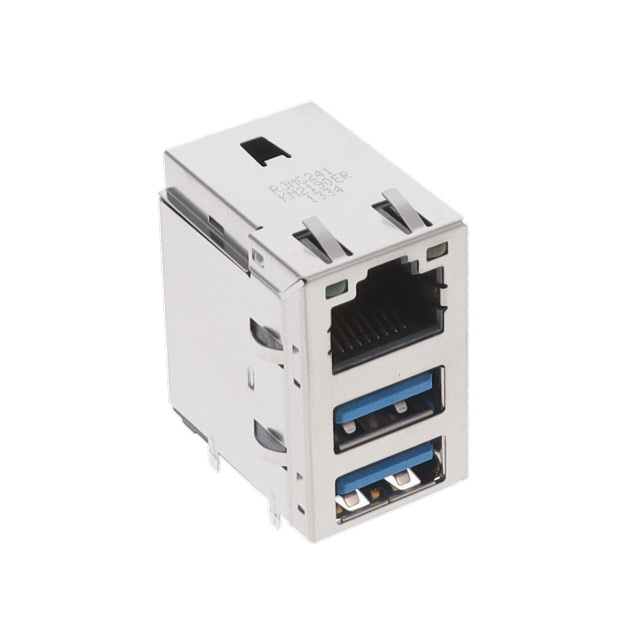

RJMG241KM2190ER
ActiveAmphenol ICC (Commercial Products)
RJMAG 1000 BASE-T STACK DUAL USB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RJMG241KM2190ER
ActiveAmphenol ICC (Commercial Products)
RJMAG 1000 BASE-T STACK DUAL USB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RJMG241KM2190ER |
|---|---|
| Applications | AutoMDIX, 10/100/1000 Base-T |
| Connector Type | RJ45 with USB A, Dual |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Height Above Board | 31 mm |
| Height Above Board | 1.22 in |
| Housing Material | Liquid Crystal Polymer (LCP) |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Stainless Steel |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.77 | |
| 10 | $ 5.22 | |||
| 25 | $ 4.93 | |||
| 40 | $ 4.81 | |||
| 200 | $ 4.57 | |||
| 400 | $ 4.23 | |||
Description
General part information
RJMG241 Series
1 Port RJ45 with USB A, DualThrough Hole 10/100/1000 Base-T, AutoMDIX
