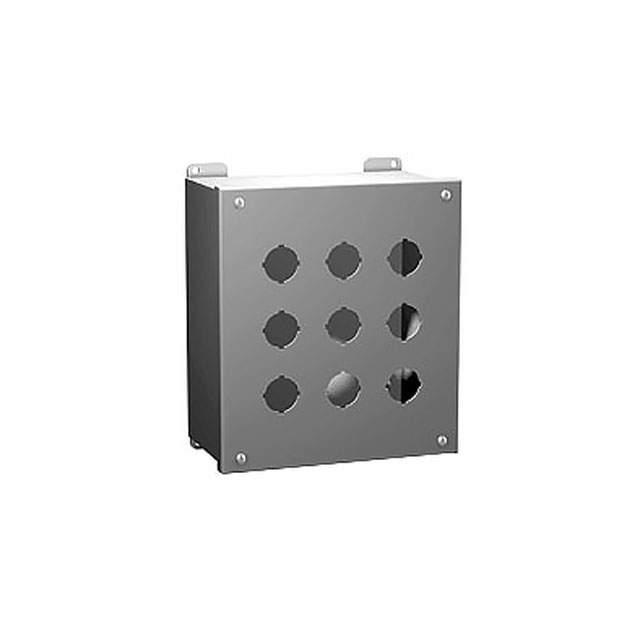

1437MH

Active

Hammond Manufacturing

BOX STEEL GRAY 9.5"L X 6.25"W

Deep-Dive with AI

Search across all available documentation for this part.

1437MH

Active

Hammond Manufacturing

BOX STEEL GRAY 9.5"L X 6.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1437MH

Area (L x W)	59.4 in²
Area (L x W)	383 cm²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	6 Fibers
Height [z]	120.65 mm
Height [z]	4.75 in
Material	Metal, Steel
Ratings	UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12
Size / Dimension [x]	9.5 "
Size / Dimension [x]	241.3 mm
Size / Dimension [y]	6.25 "
Size / Dimension [y]	158.75 mm
Thickness	14 Gauge
Weight	2.3 kg
Weight	5 lbs

1437 Series

Part	Design	Material	Container Type	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Ratings	Weight	Weight	Features	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness	Features
Hammond Manufacturing 1437D	Hinged Door Lid	Metal Steel	Box	258 cm²	40 in²	120.65 mm	4.75 in	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	2.3 kg	5 lbs	4 Cable Entries	Gray	10 in	4 "	254 mm	101.6 mm	14 Gauge
Hammond Manufacturing 1437SSD	Hinged Door Lid		Box	258 cm²	40 in²	120.65 mm	4.75 in	IP66 JIC EGP-1-1967 NEMA 4 NEMA 4X UL-508	2.3 kg	5 lbs	4 Cable Entries	Natural	10 in	4 "	254 mm	101.6 mm	14 Gauge
Hammond Manufacturing 1437V	Hinged Door Lid	Metal Steel	Box	974 cm²	151 in²	120.65 mm	4.75 in	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	5 kg	11 lbs	20 Positions	Gray	14 in	10.75 in	355.6 mm	273.05 mm	14 Gauge
Hammond Manufacturing 1437MS	Hinged Door Lid	Metal Steel	Box	813 cm²	126 in²	120.65 mm	4.75 in	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	4.1 kg	9 lbs	16 Switches	Gray	11.75 in	10.75 in	298.45 mm	273.05 mm	14 Gauge
Hammond Manufacturing 1437SSC	Hinged Door Lid		Box	206 cm²	32 in²	120.65 mm	4.75 in	IP66 JIC EGP-1-1967 NEMA 4 NEMA 4X UL-508	2.3 kg	5 lbs		Natural	8 "	4 "	203.2 mm	101.6 mm	14 Gauge
Hammond Manufacturing 1437C	Hinged Door Lid	Metal Steel	Box	206 cm²	32 in²	120.65 mm	4.75 in	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	2.3 kg	5 lbs		Gray	8 "	4 "	203.2 mm	101.6 mm	14 Gauge
Hammond Manufacturing 1437MH	Hinged Door Lid	Metal Steel	Box	383 cm²	59.4 in²	120.65 mm	4.75 in	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	2.3 kg	5 lbs	6 Fibers	Gray	9.5 "	6.25 "	241.3 mm	158.75 mm	14 Gauge
Hammond Manufacturing 1437MO	Hinged Door Lid	Metal Steel	Box			120.65 mm	4.75 in	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	3.6 kg	8 lbs	12	Gray					14 Gauge
Hammond Manufacturing 1437F	Hinged Door Lid	Metal Steel	Box	292 cm²	45.3 in²	120.65 mm	4.75 in	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	2.3 kg	5 lbs	4 Cable Entries	Gray	7.25 in	6.25 "	184.15 mm	158.75 mm	14 Gauge
Hammond Manufacturing 1437S16A	Cover Included		Box	103 cm˛	16 in˛	120.65 mm	4.75 in	IP66 JIC EGP-1-1967 NEMA 4 NEMA 4X UL-508	1.4 kg	3.1 lbs		Natural	4 in	4 "	101.6 mm	101.6 mm	16 Gauge	Pushbutton Holes - 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 134.82

Description

General part information

1437 Series

Box Metal, Steel Gray Hinged Door, Lid 9.500" L x 6.250" W (241.30mm x 158.75mm) X 4.750" (120.65mm)

Documents

Technical documentation and resources

No documents available
