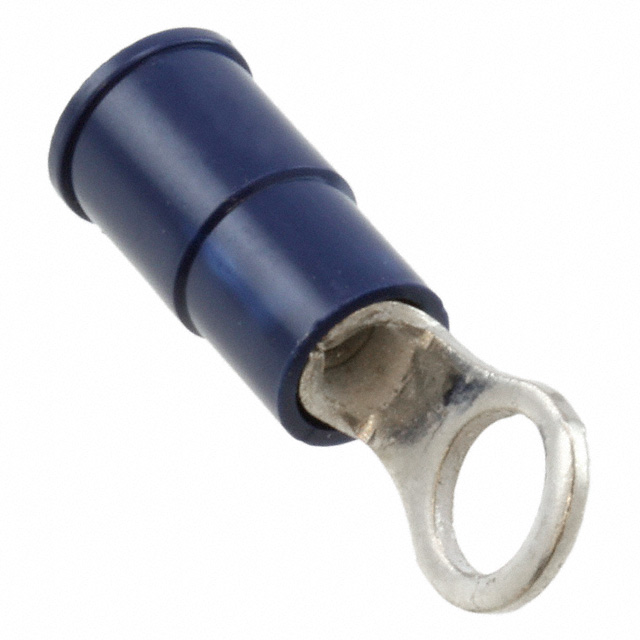

0190540224

Active

Molex

CONN RING CIRC 14-16AWG #8 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec +1

0190540224

Active

Molex

CONN RING CIRC 14-16AWG #8 CRIMP

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190540224

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [diameter]	0.175 in
Insulation Diameter [diameter]	4.45 mm
Length - Overall [x]	21.2 mm
Length - Overall [x]	0.835 in
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Thickness	0.79 mm
Width - Outer Edges [y]	0.25 "
Width - Outer Edges [y]	6.35 mm

019054 Series

Part	Contact Material	Terminal Type	Material - Insulation	Length - Overall	Length - Overall	Thickness	Thickness	Insulation	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Color	Stud/Tab Size	Mounting Type	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Termination	Insulation Diameter	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Insulation Diameter	Features	Width - Outer Edges	Width - Outer Edges
Molex 0190540215	Copper	Circular	Poly-Vinyl Chloride (PVC)	1.112 in	28.24 mm	0.031 in	0.79 mm	Insulated	Electro-Tin	11.86 mm	0.467 in	Blue	0.25 Stud	Free Hanging (In-Line)	0.175 in	4.45 mm	Crimp
Molex 0190540059	Copper	Circular	Poly-Vinyl Chloride (PVC)			0.028 in	0.71 mm	Insulated	Electro-Tin			Red	10 Stud	Free Hanging (In-Line)	0.145 "		Crimp	3.68 mm	0.866 "	22 mm	22 AWG	17.5 AWG	6.93 mm	0.273 in
Molex 0190540033	Copper	Circular	Poly-Vinyl Chloride (PVC)			0.028 in	0.71 mm	Insulated	Electro-Tin			Red	6 Stud	Free Hanging (In-Line)	0.145 "		Crimp	3.68 mm	0.759 in	19.28 mm	22 AWG	17.5 AWG	5.72 mm	0.225 in
Molex 0190540075	Copper	Circular	Poly-Vinyl Chloride (PVC)			0.031 in	0.79 mm	Insulated	Electro-Tin			Blue		Free Hanging (In-Line)	0.175 in	4.45 mm	Crimp		1.311 "	33.3 mm					3/8 Stud
Molex 0190540073	Copper	Circular	Poly-Vinyl Chloride (PVC)			0.031 in	0.79 mm	Insulated	Electro-Tin			Blue		Free Hanging (In-Line)	0.175 in	4.45 mm	Crimp		1.311 "	33.3 mm					14 Stud
Molex 0190540126	Copper	Circular	Poly-Vinyl Chloride (PVC)			0.05 in	50 mils	Insulated	Electro-Tin	15.19 mm	0.598 in			Free Hanging (In-Line)			Crimp	6.35 mm	1.347 in	34.21 mm					3/8 Stud	0.25 "	Heavy Duty
Molex 0190540063	Copper	Circular	Poly-Vinyl Chloride (PVC)			0.05 in	50 mils	Insulated	Electro-Tin	19.3 mm	0.76 in	Yellow		Free Hanging (In-Line)	0.252 in	6.4 mm	Crimp		1.571 in	39.9 mm					1/2 Stud
Molex 0190540224	Copper	Circular	Poly-Vinyl Chloride (PVC)			0.031 in	0.79 mm	Insulated	Electro-Tin	6.35 mm	0.25 "	Blue		Free Hanging (In-Line)	0.175 in	4.45 mm	Crimp		0.835 in	21.2 mm					8 Stud
Molex 0190540092	Copper	Circular	Poly-Vinyl Chloride (PVC)			0.05 in	50 mils	Insulated	Electro-Tin					Free Hanging (In-Line)			Crimp	6.35 mm	1.076 in	27.33 mm					8 Stud	0.25 "	Heavy Duty	0.385 in	9.78 mm
Molex 0190540042	Copper	Circular	Poly-Vinyl Chloride (PVC)			0.028 in	0.71 mm	Insulated	Electro-Tin	11.86 mm	0.467 in	Red	0.25 Stud	Free Hanging (In-Line)	0.145 "		Crimp	3.68 mm			22 AWG	17.5 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.26
		10	$ 0.21
		100	$ 0.15
		1000	$ 0.12

Description

General part information

019054 Series

Ring Terminal Connector 8 Stud Circular 14-16 AWG Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet

Insulkrimp Rings, Spades Prod Spec

Datasheet
