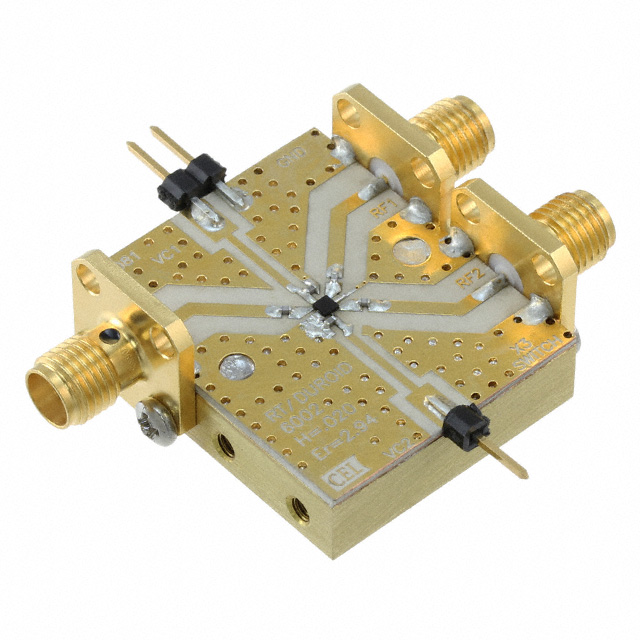

CG2163X3-EVAL

Active

CEL

EVAL BOARD FOR CG2163X3

Search across all available documentation for this part.

Active

CEL

EVAL BOARD FOR CG2163X3

Technical Specifications

Parameters and characteristics for this part

Specification	CG2163X3-EVAL

For Use With/Related Products	CG2163X3
Frequency [Max]	6 GHz
Frequency [Min]	2.4 GHz
Supplied Contents	Board(s)
Type	Switch, SPDT

Part	Supplied Contents	Type	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Test Frequency	P1dB	Circuit	Insertion Loss	RF Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency Range [Max]	Frequency Range [Min]	Package / Case	Supplier Device Package	Impedance	IIP3	Isolation
CEL CG2163X3-EVAL	Board(s)	Switch SPDT	CG2163X3	6 GHz	2.4 GHz
CEL CG2163X3						6 GHz	32 dBm	SPDT	0.5 dB	802.11a/b/g/n/ac	1.8 V	5 V	6 GHz	2.4 GHz	6-XFDFN Exposed Pad	6-TSON (1.5x1.5)	50 Ohms
CEL CG2163X3-C2						6 GHz	32 dBm	SPDT	0.5 dB	802.11a/b/g/n/ac	1.8 V	5 V	6 GHz	2.4 GHz	6-XFDFN Exposed Pad	6-TSON (1.5x1.5)	50 Ohms	55 dBm	31 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.00

General part information

CG2163X3 - Switch, SPDT 2.4GHz ~ 6GHz Evaluation Board
