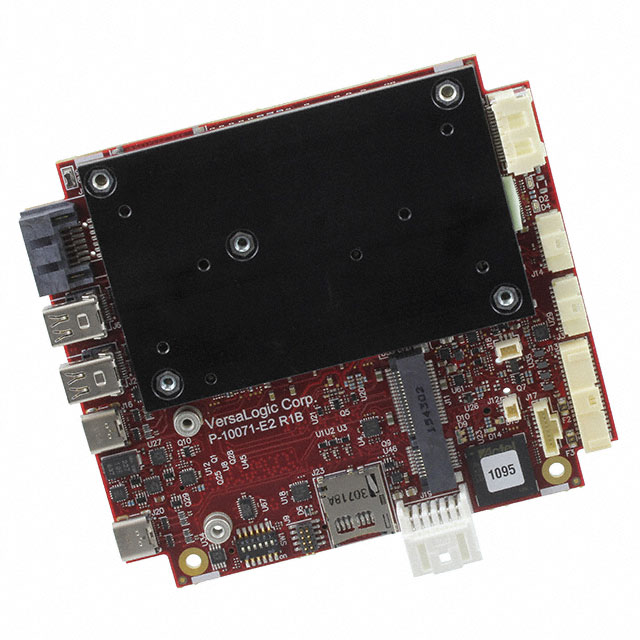

VL-EPME-42EBP-04

Obsolete

VersaLogic Corporation

SBC 3.5GHZ 2 CORE 4GB/4GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VL-EPME-42EBP-04

Obsolete

VersaLogic Corporation

SBC 3.5GHZ 2 CORE 4GB/4GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VL-EPME-42EBP-04

Cooling Type	Heat Plate
Core Processor	Intel Core i5
Digital I/O Lines	8
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	PCIe/104
Form Factor	PC/104
Number of Cores	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	12.5 W
RS-232 (422, 485)	4
Size / Dimension [x]	4.23 "
Size / Dimension [x]	107.44 mm
Size / Dimension [y]	3.77 in
Size / Dimension [y]	95.75 mm
Speed	3.5 GHz
Storage Interface	mSATA, SATA, microSD
USB	USB 2.0 (4), USB 3.0 (2)
Video Outputs	Mini Display Port
Watchdog Timer	True

VL-EPM Series

Part	Ethernet	Core Processor	Expansion Site/Bus	Cooling Type	Number of Cores	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Digital I/O Lines	Form Factor	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Storage Interface	RS-232 (422, 485)	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	USB	RAM Capacity/Installed	Video Outputs	Video Core	Function	Ethernet	Size / Dimension
VersaLogic Corporation VL-EPME-30EAP	10 Mbps 100 Mbps 1000 Mbps	Intel Atom E3815	PCIe/104	Heat Plate	1	4.23 "	107.44 mm	3.77 in	95.75 mm	18	PC/104	6.75 W	85 °C	-40 °C	1.46 GHz	mSATA SATA	2	8 GB	0 GB	USB 2.0 (5) USB 3.0 (1)
VersaLogic Corporation VL-EPM-43SCP-08	10 Mbps 100 Mbps 1000 Mbps	Intel Core i7-7600U	PC/104-Plus	Heat Plate	2	4.23 "	107.44 mm	3.77 in	95.75 mm	8	PC/104	13.3 W	60 °C	0 °C	3.9 GHz	microSD Mini PCIe mSATA SATA SPI	4			USB 2.0 (4) USB 3.0 (2)	8 GB	miniDP
VersaLogic Corporation VL-EPM-V7E			PC/104-Plus	Heat Sink		3.543 "	90 mm	3.779 in	96 mm			3.38 W	85 °C	-40 °C								LVDS VGA	SM750 - 128-Bit 2D graphics engine	Video Card/Module
VersaLogic Corporation VL-EPM-35E		Intel Core 2 Duo SP9300	PC/104-Plus	Fan	2						PC/104	15.5 W	85 °C	-40 °C	1.2 GHz	eUSB MiniBlade SATA2 (2)	4			USB 2.0 (6)	0 GB 4 GB	LVDS VGA			GbE (2)	3.78 in 4.21 in
VersaLogic Corporation VL-EPME-42EAP-08	10 Mbps 100 Mbps 1000 Mbps	Intel Core i3	PCIe/104	Heat Plate	2	4.23 "	107.44 mm	3.77 in	95.75 mm	8	PC/104		85 °C	-40 °C		microSD mSATA SATA	4			USB 2.0 (4) USB 3.0 (2)	8 GB	Mini Display Port
VersaLogic Corporation VL-EPME-42EBP-04	10 Mbps 100 Mbps 1000 Mbps	Intel Core i5	PCIe/104	Heat Plate	2	4.23 "	107.44 mm	3.77 in	95.75 mm	8	PC/104	12.5 W	85 °C	-40 °C	3.5 GHz	microSD mSATA SATA	4			USB 2.0 (4) USB 3.0 (2)		Mini Display Port
VersaLogic Corporation VL-EPM-35SR		Intel Core 2 Duo SP9300	PC/104-Plus	Fan	2						PC/104	21.3 W	60 °C	0 °C	2.26 GHz	eUSB MiniBlade SATA2 (2)	4			USB 2.0 (6)	0 GB 4 GB	LVDS VGA			GbE (2)	3.78 in 4.21 in
VersaLogic Corporation VL-EPME-42EAP-00	10 Mbps 100 Mbps 1000 Mbps	Intel Core i3	PCIe/104	Heat Plate	2	4.23 "	107.44 mm	3.77 in	95.75 mm	8	PC/104		85 °C	-40 °C		microSD mSATA SATA	4			USB 2.0 (4) USB 3.0 (2)	0 GB	Mini Display Port
VersaLogic Corporation VL-EPM-15H	10 Mbps 100 Mbps	Geode LX 800	PC/104-Plus	Heat Sink	1	3.6 in	91.44 mm	3.8 "	96.52 mm		PC/104	5 W	85 °C	-40 °C	500 MHz	ATA66 CompactFlash	4			USB 2.0 (4)	256 MB	LVDS VGA			(1)
VersaLogic Corporation VL-EPME-42SCP-00	10 Mbps 100 Mbps 1000 Mbps	Intel Core i7	PCIe/104	Heat Plate	2	4.23 "	107.44 mm	3.77 in	95.75 mm	8	PC/104	12.5 W	60 °C	0 °C	3.9 GHz	microSD mSATA SATA	4			USB 2.0 (4) USB 3.0 (2)	0 GB	Mini Display Port

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VL-EPM Series

Single Board Computer 3.5GHz 2 Core 4GB/4GB RAM Intel Core i5

Documents

Technical documentation and resources
