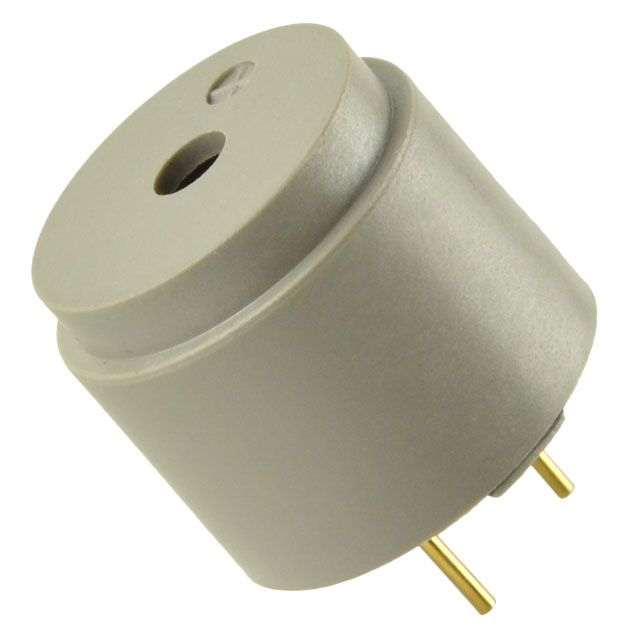

CMT-1614C-120

Active

CUI Devices

BUZZER MAGNETIC 12V 16MM TH

Search across all available documentation for this part.

Active

CUI Devices

BUZZER MAGNETIC 12V 16MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	CMT-1614C-120

Current - Supply	80 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	2.048 kHz
Height - Seated (Max) [Max] [z]	0.571 in
Height - Seated (Max) [Max] [z]	14.5 mm
Input Type	Zero-Peak Signal
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Port Location	Top
Ratings	Washable
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Sound Pressure Level (SPL)	85 dB
Technology	Magnetic
Termination	PC Pins
Voltage - Rated	12 VDC
Voltage Range [Max]	13 VDC
Voltage Range [Min]	9 V

Part	Operating Mode	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency	Voltage Range [Max]	Voltage Range [Min]	Driver Circuitry	Mounting Type	Voltage - Rated	Sound Pressure Level (SPL)	Termination	Current - Supply	Port Location	Technology	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Input Type
CUI Devices CMT-1614C-120	Single Tone	85 °C	-40 °C	0.63 in	16 mm	2.048 kHz	13 VDC	9 V	Externally Driven Transducer	Through Hole	12 VDC	85 dB	PC Pins	80 mA	Top	Magnetic	Washable	0.571 in	14.5 mm	Zero-Peak Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 1.43

General part information

Buzzers Transducer, Externally Driven Magnetic 12 V 80mA 2.048kHz 85dB @ 12V, 10cm Through Hole PC Pins
