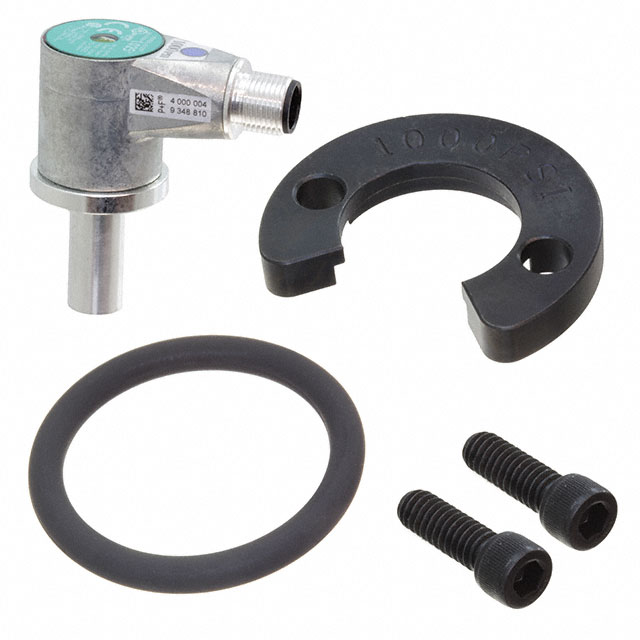

NJ2-F-E02-1.025-V1
ActivePEPPERL+FUCHS
INDUCTIVE SEN CYLINDER POSITION
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJ2-F-E02-1.025-V1 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Zinc Die-Cast |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | NPN/PNP-NO |
| Output Type | 4 Pole |
| Package / Case | Module |
| Sensing Distance | 0.079 in |
| Sensing Distance | 2 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 426.55 | |
Description
General part information
NJ2-F Series
INDUCTIVE SEN CYLINDER POSITION
