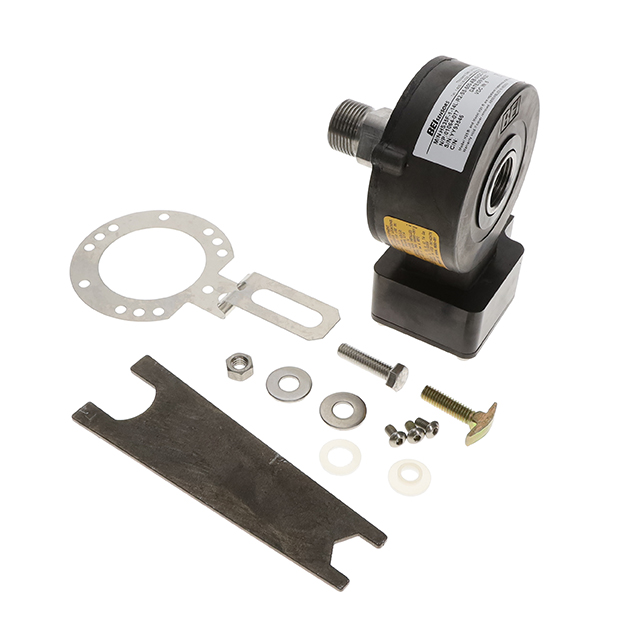

01064-077

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 500PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 500PPR

Technical Specifications

Parameters and characteristics for this part

Specification	01064-077

Actuator Type	Hole for Shaft
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Chassis Mount, Motors
Orientation	User Selectable
Output Type	Quadrature (Incremental)
Pulses per Revolution	500
Rotational Life (Cycles Min) [Min]	7.5B
Termination Style	Terminal Block, Straight - Push In

Part	Orientation	Pulses per Revolution	Mounting Type	Actuator Type	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Rotational Life (Cycles Min) [Min]	Encoder Type
Sensata-BEI Sensors 01064-073	User Selectable	1000	Chassis Mount	Hole for Shaft	Connector	9 V	5 V	Quadrature (Incremental)	7.5B	Optical
Sensata-BEI Sensors 01064-077	User Selectable	500	Chassis Mount Motors	Hole for Shaft	Terminal Block Straight - Push In			Quadrature (Incremental)	7.5B	Optical
Sensata-BEI Sensors 01064-088	User Selectable	100	Chassis Mount	Hole for Shaft	Connector			Quadrature (Incremental)	7.5B	Optical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2466.39

General part information

ROTARY ENCODER OPTICAL 500PPR

Technical documentation and resources

No documents available
