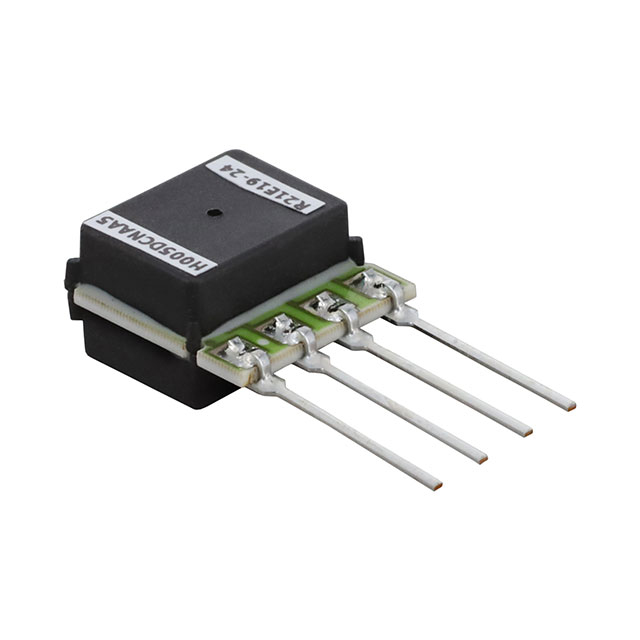

ELVH-005D-HNNH-C-NAA5

Active

Amphenol All Sensors Corporation

SENSOR 4.93PSID

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 4.93PSID

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Pressure Type	Mounting Type	Features	Port Style	Termination Style	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Package / Case	Maximum Pressure	Maximum Pressure	Output	Port Size	Port Size	Port Size	Supplier Device Package	Package / Case	Package / Case
Amphenol All Sensors Corporation ELVH-005D-HNNH-C-NAA5	Analog Voltage	Differential	Through Hole	Temperature Compensated	No Port	PC Pin	0.25 %	2.7 V	5.5 V	-3 kPa	4.93 PSI	-4.93 PSI	34 kPa	4-SIP	103 kPa	14.94 PSI
Amphenol All Sensors Corporation ELVH-005D-HRRJ-C-N2A4	I2C	Differential	Surface Mount	Temperature Compensated	Barbed	J Lead	0.25 %	2.7 V	5.5 V	-3 kPa	4.93 PSI	-4.93 PSI	34 kPa	8-SMD Dual Ports J-Lead Same Side	103 kPa	14.94 PSI	14 b	Dual Male Tube	0.06 "	1.6 mm
Amphenol All Sensors Corporation ELVH-005D-HRRD-C-N2A5	I2C	Differential	Through Hole	Temperature Compensated	Barbed	PC Pin	0.25 %	2.7 V	5.5 V	-3 kPa	4.93 PSI	-4.93 PSI	34 kPa	8-DIP Dual Ports Same Side	103 kPa	14.94 PSI	14 b	Dual Male Tube	0.06 "	1.6 mm	8-DIP	12.8 mm	0.504 in
Amphenol All Sensors Corporation ELVH-005D-HRRD-C-NAA5	Analog Voltage	Differential	Through Hole	Temperature Compensated	Barbed	PC Pin	0.25 %	2.7 V	5.5 V	-3 kPa	4.93 PSI	-4.93 PSI	34 kPa	8-DIP Dual Ports Same Side	103 kPa	14.94 PSI		Dual Male Tube	0.06 "	1.6 mm	8-DIP	12.8 mm	0.504 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor -0.44PSI ~ 4.93PSI (-3kPa ~ 34kPa) Differential 4-SIP
