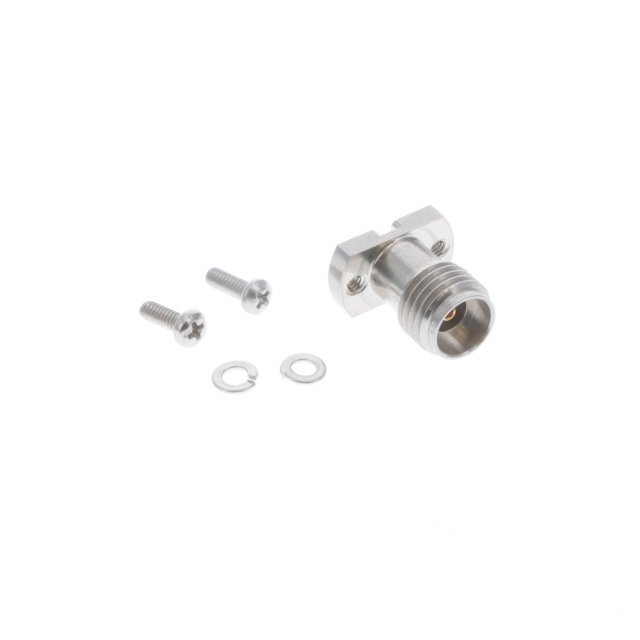

02K722-40MS3

Active

Rosenberger

2.92MM VERTICAL JACK PCB 26.5GHZ

Search across all available documentation for this part.

Active

Rosenberger

2.92MM VERTICAL JACK PCB 26.5GHZ

Technical Specifications

Parameters and characteristics for this part

Specification	02K722-40MS3

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Shield Termination	Screw
Voltage Rating	250 VDC

Part	Connector Type	Contact Termination	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Shield Termination	Frequency - Max [Max]	Mating Cycles	Body Material	Mounting Feature	Housing Color	Number of Ports	Impedance	Voltage Rating	Center Contact Material	Center Contact Plating
Rosenberger 02K722-40MS3	Female Socket Jack	Compression	2.92 mm	0 °C	85 °C	Polytetrafluoroethylene (PTFE)	Screw	40 GHz	500	Stainless Steel	Flange	Silver	1	50 Ohms	250 VDC	Beryllium Copper	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Panel Mount Compression
