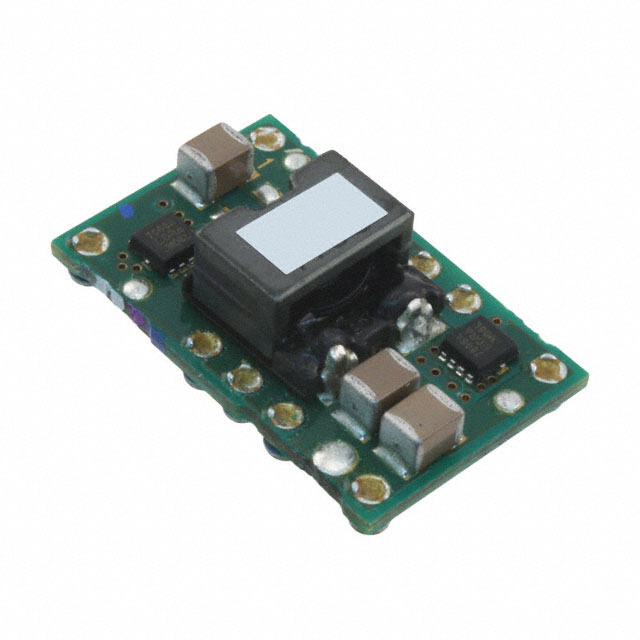

PTH05060WAZ
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 0.8-3.6V 36W
Deep-Dive with AI
Search across all available documentation for this part.
PTH05060WAZ
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 0.8-3.6V 36W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTH05060WAZ |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 94 % |
| Features | UVLO, Remote On/Off, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module |
| Power (Watts) | 36 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 0.62 " |
| Size / Dimension [y] | 15.7 mm |
| Size / Dimension [z] | 0.35 " |
| Size / Dimension [z] | 8.9 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 3.6 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.79 | |
| 5 | $ 16.66 | |||
| 10 | $ 16.53 | |||
| 36 | $ 16.27 | |||
| 72 | $ 15.50 | |||
| 108 | $ 14.21 | |||
| 252 | $ 13.95 | |||
| 468 | $ 13.74 | |||
Description
General part information
PTH05060 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 10A 4.5V - 5.5V Input
