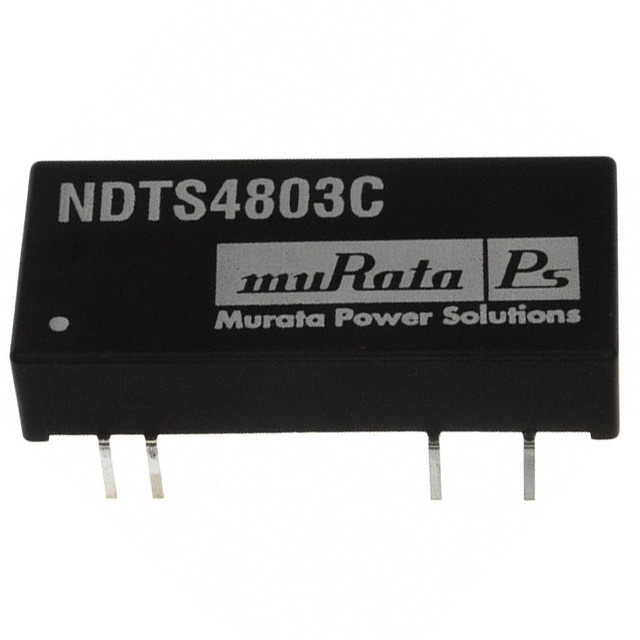

NDTS4803C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 3W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Number of Outputs	Voltage - Isolation	Current - Output (Max) [Max]	Type	Applications	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Input (Max) [Max]	Voltage - Output 1
Murata Power Solutions Inc. NDTS4803C	24-DIP Module (600 mil 8 Leads)	1	1000 V	909 mA	Isolated Module	ITE (Commercial)	3 W	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Through Hole	36 V	85 °C	-40 °C	71 %	72 V	3.3 V
Murata Power Solutions Inc. NDTS4815C	24-DIP Module (600 mil 8 Leads)	1	1000 V	200 mA	Isolated Module	ITE (Commercial)	3 W	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Through Hole	36 V	85 °C	-40 °C	80 %	72 V	15 V
Murata Power Solutions Inc. NDTS4805C	24-DIP Module (600 mil 8 Leads)	1	1000 V	600 mA	Isolated Module	ITE (Commercial)	3 W	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Through Hole	36 V	85 °C	-40 °C	75 %	72 V	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 3.3V 909mA 36V - 72V Input
