0194180019

Active

Molex

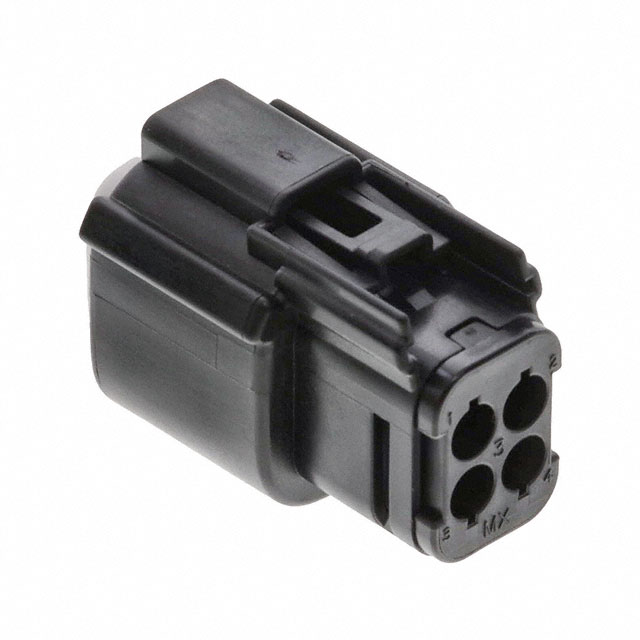

CONN HOUSING RCP 4 POS 5.84MM CRIMP ST CABLE MOUNT MX150L™ BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMX150L Series Assembly Instr Datasheet

0194180019

Active

Molex

CONN HOUSING RCP 4 POS 5.84MM CRIMP ST CABLE MOUNT MX150L™ BAG

Deep-Dive with AI

DocumentsMX150L Series Assembly Instr Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0194180019

Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	IP67
Insulation Material	Polybutylene Terephthalate (PBT), Polyester
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5.84 mm
Pitch [x]	0.23 in
Row Spacing [Max]	0.236 in
Row Spacing [Max]	6 mm

019418 Series

Part	Insulation Material	Contact Termination	Number of Positions	Connector Type	Features	Fastening Type	Contact Type	Number of Rows	Row Spacing [Max]	Row Spacing [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Note
Molex 0194180002	Polybutylene Terephthalate (PBT) Polyester	Crimp	8	Receptacle	Connector Position Assurance (CPA) IP67	Latch Holder	Female Socket	2	0.236 in	6 mm	Free Hanging (In-Line)	-40 °C	120 °C	5.84 mm	0.23 in	Contacts Not Included
Molex 0194180025	Polybutylene Terephthalate (PBT) Polyester	Crimp	10	Receptacle	IP67	Latch Holder	Female Socket	2	0.236 in	6 mm	Free Hanging (In-Line)	-40 °C	120 °C	5.84 mm	0.23 in	Contacts Not Included
Molex 0194180023	Polybutylene Terephthalate (PBT) Polyester	Crimp	8	Receptacle	IP67	Latch Holder	Female Socket	2	0.236 in	6 mm	Free Hanging (In-Line)	-40 °C	120 °C	5.84 mm	0.23 in	Contacts Not Included
Molex 0194180019	Polybutylene Terephthalate (PBT) Polyester	Crimp	4	Receptacle	IP67	Latch Holder	Female Socket	2	0.236 in	6 mm	Free Hanging (In-Line)	-40 °C	120 °C	5.84 mm	0.23 in	Contacts Not Included
Molex 0194180022	Polybutylene Terephthalate (PBT) Polyester	Crimp	8	Receptacle	IP67	Latch Holder	Female Socket	2	0.236 in	6 mm	Free Hanging (In-Line)	-40 °C	120 °C	5.84 mm	0.23 in	Contacts Not Included
Molex 0194180024	Polybutylene Terephthalate (PBT) Polyester	Crimp	10	Receptacle	IP67	Latch Holder	Female Socket	2	0.236 in	6 mm	Free Hanging (In-Line)	-40 °C	120 °C	5.84 mm	0.23 in	Contacts Not Included
Molex 0194180005	Polybutylene Terephthalate (PBT) Polyester	Crimp	4	Receptacle	Connector Position Assurance (CPA) IP67	Latch Holder	Female Socket	2	0.236 in	6 mm	Free Hanging (In-Line)	-40 °C	120 °C	5.84 mm	0.23 in	Contacts Not Included
Molex 0194180001	Polybutylene Terephthalate (PBT) Polyester	Crimp	8	Receptacle	Connector Position Assurance (CPA) IP67	Latch Holder	Female Socket	2	0.236 in	6 mm	Free Hanging (In-Line)	-40 °C	120 °C	5.84 mm	0.23 in	Contacts Not Included
Molex 0194180016	Polybutylene Terephthalate (PBT) Polyester	Crimp	2	Receptacle	IP67	Latch Holder	Female Socket	1			Free Hanging (In-Line)	-40 °C	120 °C	5.84 mm	0.23 in	Contacts Not Included
Molex 0194180021	Polybutylene Terephthalate (PBT) Polyester	Crimp	6	Receptacle	IP67	Latch Holder	Female Socket	2	0.236 in	6 mm	Free Hanging (In-Line)	-40 °C	120 °C	5.84 mm	0.23 in	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.40
Digikey	Bulk	1	$ 4.04
		10	$ 3.11
		25	$ 2.84
		50	$ 2.80

Description

General part information

019418 Series

4 Rectangular Connectors - Housings Receptacle 0.230" (5.84mm)

Documents

Technical documentation and resources

MX150L Series Assembly Instr

Datasheet
