09380182701

Active

HARTING Technology Group

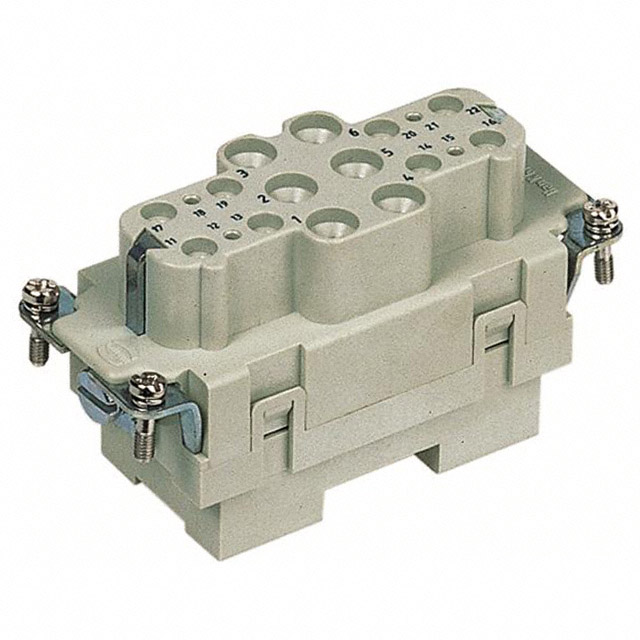

HEAVY DUTY INSERT, RCPT, 6+12SIG, 8MM2

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY INSERT, RCPT, 6+12SIG, 8MM2

Technical Specifications

Parameters and characteristics for this part

Specification	09380182701

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	12, 6
Number of Positions [custom]	Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Termination Style	Screw

Part	Number of Positions	Number of Positions [custom]	Housing Material	Contact Finish	Size	Color	Material Flammability Rating	Termination Style	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material
HARTING Technology Group 09380182602	12 6	Ground	Polycarbonate (PC)	Silver	16 B	Gray	UL94 V-0	Screw	Male	125 °C	-40 °C	Copper Alloy
HARTING Technology Group 09380182701	12 6	Ground	Polycarbonate (PC)	Silver	16 B	Gray	UL94 V-0	Screw	Female	125 °C	-40 °C	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 6+12+Ground Position Screw
