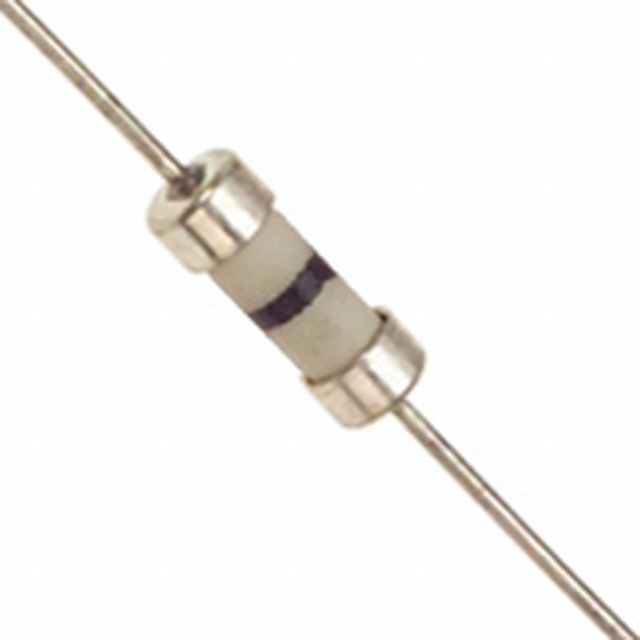

0242.250UAT1

Active

Littelfuse/Commercial Vehicle Products

FUSE CRTRDGE 250MA 250VAC/DC AXL

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

FUSE CRTRDGE 250MA 250VAC/DC AXL

Technical Specifications

Parameters and characteristics for this part

Specification	0242.250UAT1

Applications	Hazardous Locations
Breaking Capacity @ Rated Voltage	4 kA
Current Rating (Amps)	0.25 A
DC Cold Resistance	1.6 Ohms
Features	Intrinsically Safe
Fuse Type	Cartridge
Melting I²t	0.00579
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Axial
Response Time	Fast Blow
Size / Dimension [diameter]	3.02 mm
Size / Dimension [diameter]	0.119 "
Size / Dimension [x]	0.331 in
Size / Dimension [x]	8.4 mm
Voltage Rating - AC	250 VAC
Voltage Rating - DC	250 V

FUSE 250V BARRIER FUSE PT .250A

Part	Melting I²t	Fuse Type	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Features	DC Cold Resistance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Response Time	Applications	Voltage Rating - DC	Mounting Type	Current Rating (Amps)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Littelfuse/Commercial Vehicle Products 0242.250UAT1	0.00579	Cartridge	4 kA	250 VAC	Intrinsically Safe	1.6 Ohms	3.02 mm	0.119 "	0.331 in	8.4 mm	Fast Blow	Hazardous Locations	250 V	Through Hole	0.25 A	Axial	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FUSE 250V BARRIER FUSE PT .250A
