Q-0D05G0005.75M
ActiveAmphenol Custom Cable
CBL ASSY BNC-HDBNC PLG-PL 29.53"
Deep-Dive with AI
Search across all available documentation for this part.
Q-0D05G0005.75M
ActiveAmphenol Custom Cable
CBL ASSY BNC-HDBNC PLG-PL 29.53"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0D05G0005.75M |
|---|---|
| 1st Connector | BNC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 29.53 " |
| Length | 750 mm |
| Overall Impedance | 50 Ohms |
| Style | BNC to HD-BNC |
Q-0D05G0 Series
| Part | Features | Style | Cable Type | 2nd Connector | Length | Length | 1st Contact Gender | Color | Overall Impedance | 2nd Connector Mounting Type | 1st Connector | 2nd Contact Gender | 1st Connector Mounting Type | Frequency - Max [Max] | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Shielded | BNC to HD-BNC | RG-174 | HD-BNC Plug Right Angle | 50 cm | 19.69 " | Male | Black | 50 Ohms | Free Hanging (In-Line) | BNC Plug Right Angle | Male | Free Hanging (In-Line) | 4 GHz | |||
Amphenol Custom Cable | Shielded | BNC to HD-BNC | RG-316 | HD-BNC Plug Right Angle | 1.5 m | 59.1 in | Male | Copper | 50 Ohms | Free Hanging (In-Line) | BNC Plug Right Angle | Male | Free Hanging (In-Line) | 4 GHz | 4.9 ft | ||
Amphenol Custom Cable | Shielded | BNC to HD-BNC | RG-174 | HD-BNC Plug Right Angle | Male | Black | 50 Ohms | Free Hanging (In-Line) | BNC Plug Right Angle | Male | Free Hanging (In-Line) | 4 GHz | 9.843 " | 250 mm | |||
Amphenol Custom Cable | Shielded | BNC to HD-BNC | RG-316 | HD-BNC Plug Right Angle | 2.1 m | 84 in | Male | Copper | 50 Ohms | Free Hanging (In-Line) | BNC Plug Right Angle | Male | Free Hanging (In-Line) | 4 GHz | 7 ft | ||
Amphenol Custom Cable | Shielded | BNC to HD-BNC | RG-174 | HD-BNC Plug Right Angle | 1 m | 39.4 in | Male | Black | 50 Ohms | Free Hanging (In-Line) | BNC Plug Right Angle | Male | Free Hanging (In-Line) | 4 GHz | 3.3 ft | ||
Amphenol Custom Cable | Shielded | BNC to HD-BNC | RG-316 | HD-BNC Plug Right Angle | 152.4 mm | 6 in | Male | Copper | 50 Ohms | Free Hanging (In-Line) | BNC Plug Right Angle | Male | Free Hanging (In-Line) | 4 GHz | |||
Amphenol Custom Cable | Shielded | BNC to HD-BNC | RG-174 | HD-BNC Plug Right Angle | 750 mm | 29.53 " | Male | Black | 50 Ohms | Free Hanging (In-Line) | BNC Plug Right Angle | Male | Free Hanging (In-Line) | 4 GHz | |||
Amphenol Custom Cable | Shielded | BNC to HD-BNC | RG-174 | HD-BNC Plug Right Angle | 76.2 mm | 3 in | Male | Black | 50 Ohms | Free Hanging (In-Line) | BNC Plug Right Angle | Male | Free Hanging (In-Line) | 4 GHz | |||
Amphenol Custom Cable | Shielded | BNC to HD-BNC | RG-174 | HD-BNC Plug Right Angle | 228.6 mm | 9 " | Male | Black | 50 Ohms | Free Hanging (In-Line) | BNC Plug Right Angle | Male | Free Hanging (In-Line) | 4 GHz | |||
Amphenol Custom Cable | Shielded | BNC to HD-BNC | RG-316 | HD-BNC Plug Right Angle | 750 mm | 29.53 " | Male | Copper | 50 Ohms | Free Hanging (In-Line) | BNC Plug Right Angle | Male | Free Hanging (In-Line) | 4 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 139.40 | |
| 25 | $ 136.71 | |||
| 50 | $ 134.03 | |||
| 100 | $ 131.34 | |||
| 250 | $ 128.65 | |||
Description
General part information
Q-0D05G0 Series

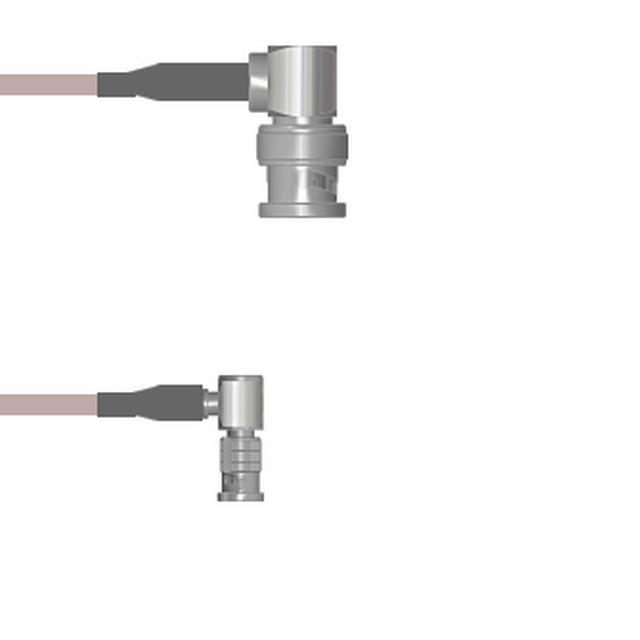

Cable Assembly Coaxial BNC to HD-BNC RG-316 29.53" (750.00mm)
