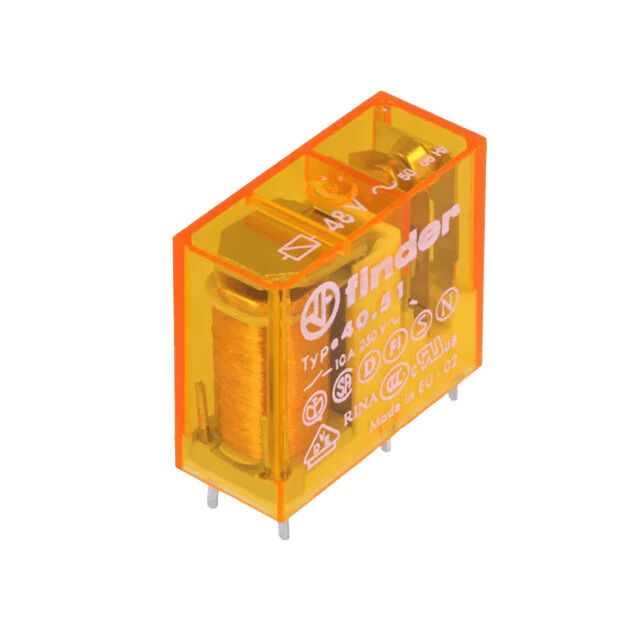

40.51.8.048.0000

Active

Finder Relays, Inc.

PCB/PLUG-IN RELAY, SPDT 10A, 48V

Search across all available documentation for this part.

Active

Finder Relays, Inc.

PCB/PLUG-IN RELAY, SPDT 10A, 48V

Technical Specifications

Parameters and characteristics for this part

Specification	40.51.8.048.0000

Approval Agency	EAC, CCC, RINA, CSA, cURus, VDE, ENEC
Coil Current	21 mA
Coil Resistance	1.35 kOhms
Coil Type	Non Latching
Coil Voltage	48 VAC/DC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Load - Max Switching	4800 VA
Mounting Type	Socketable
Must Operate Voltage	38.4 VAC
Must Release Voltage	9.6 VAC
Operate Time	7 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	Plug In

Part	Mounting Type	Termination Style	Seal Rating	Coil Voltage	Must Operate Voltage	Contact Rating (Current)	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Coil Type	Operate Time	Load - Max Switching	Must Release Voltage	Contact Form	Switching Voltage [Max]	Relay Type	Coil Current	Coil Resistance	Contact Material
Finder Relays, Inc. 40.51.8.024.0000	Socketable	Plug In	Sealed - Flux Protection	24 VAC	19.2 VAC	10 A	CCC CSA cURus EAC ENEC RINA VDE	85 °C	-40 °C	3 ms	Non Latching	7 ms	4000 VA	4.8 VAC	SPDT (1 Form C)	400 VAC	General Purpose	45 mA	320 Ohms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.51.8.240.0000	Socketable	Plug In	Sealed - Flux Protection	240 VAC	192 VAC	10 A	CCC CSA cURus EAC ENEC RINA VDE	85 °C	-40 °C	3 ms	Non Latching	7 ms	4000 VA	48 VAC	SPDT (1 Form C)	400 VAC	General Purpose	4.1 mA	31.5 kOhms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.51.8.048.0000	Socketable	Plug In	Sealed - Flux Protection	48 VAC/DC	38.4 VAC	12 A	CCC CSA cURus EAC ENEC RINA VDE	85 °C	-40 °C	3 ms	Non Latching	7 ms	4800 VA	9.6 VAC	SPDT (1 Form C)	400 VAC	General Purpose	21 mA	1.35 kOhms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.51.8.120.5000	Socketable	Plug In	Sealed - Flux Protection	120 VAC	96 VAC	10 A	CCC CSA cURus EAC ENEC RINA VDE	85 °C	-40 °C	3 ms	Non Latching	7 ms	4000 VA	24 VAC	SPDT (1 Form C)	400 VAC	General Purpose	8.4 mA	9 kOhms	Silver Nickel (AgNi)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.48

General part information

General Purpose Relay SPDT (1 Form C) 48VAC Coil Socketable
