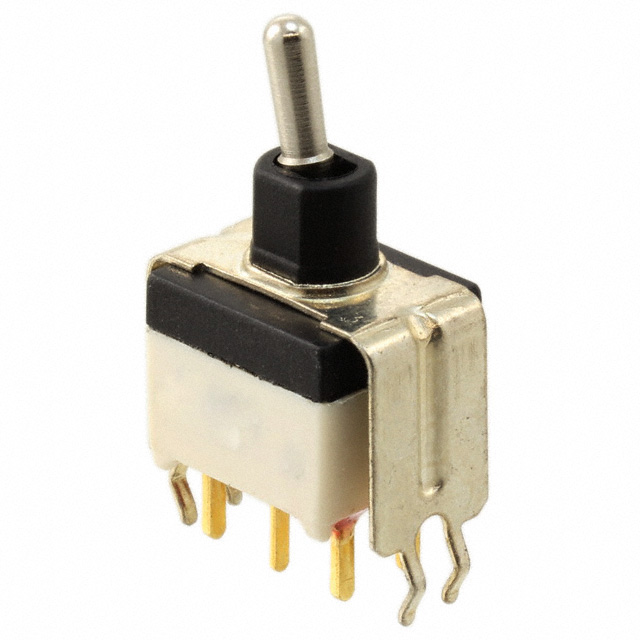

SY246CD7
ActiveAPEM
SWITCH TOGGLE DPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SY246CD7
ActiveAPEM
SWITCH TOGGLE DPDT 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SY246CD7 |
|---|---|
| Actuator Length [x] | 7.5 mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | DPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 100000 Cycles |
| Features | Sealed |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 20.14 | |
Description
General part information
SY246 Series
Toggle Switch DPDT Through Hole
