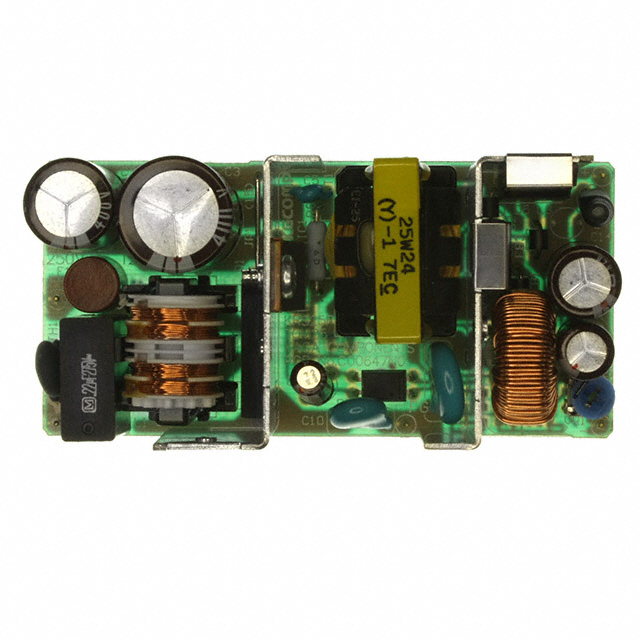

KRS25F-24

Active

Volgen + Furuno

AC/DC CONVERTER 24V 25W

Search across all available documentation for this part.

Active

Volgen + Furuno

AC/DC CONVERTER 24V 25W

Technical Specifications

Parameters and characteristics for this part

Specification	KRS25F-24

Applications	ITE (Commercial)
Approval Agency	IEC
Efficiency	80 %
Features	Adjustable Output, Universal Input
Load Regulation	100 mV
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	5-DIP Module
Power (Watts)	25 W
Size / Dimension [x]	3.35 in
Size / Dimension [x]	85 mm
Size / Dimension [y]	41 mm
Size / Dimension [y]	1.61 "
Size / Dimension [z]	23 mm
Size / Dimension [z]	0.91 in
Standard Number	60950-1
Type	Open Frame
Voltage - Output 1	24 V
Weight	99.79 g
Weight	0.22 lb

Part	Power (Watts)	Standard Number	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Approval Agency	Number of Outputs	Applications	Operating Temperature [Max]	Voltage - Output 1	Load Regulation	Type	Mounting Type	Efficiency	Features	Current - Output (Max) [Max]
Volgen + Furuno KRS25F-05	25 W	60950-1	5-DIP Module	23 mm	41 mm	3.35 in	1.61 "	0.91 in	85 mm	99.79 g	0.22 lb	IEC	1	ITE (Commercial)	70 °C	5 V	100 mV	Open Frame	Through Hole	74 %	Adjustable Output Universal Input	5 A
Volgen + Furuno KRS25F-24	25 W	60950-1	5-DIP Module	23 mm	41 mm	3.35 in	1.61 "	0.91 in	85 mm	99.79 g	0.22 lb	IEC	1	ITE (Commercial)	70 °C	24 V	100 mV	Open Frame	Through Hole	80 %	Adjustable Output Universal Input
Volgen + Furuno KRS25F-15	25 W	60950-1	5-DIP Module	23 mm	41 mm	3.35 in	1.61 "	0.91 in	85 mm	99.79 g	0.22 lb	IEC	1	ITE (Commercial)	70 °C	15 V	100 mV	Open Frame	Through Hole	80 %	Adjustable Output Universal Input	1.7 A
Volgen + Furuno KRS25F-03	25 W	60950-1	5-DIP Module	23 mm	41 mm	3.35 in	1.61 "	0.91 in	85 mm	99.79 g	0.22 lb	IEC	1	ITE (Commercial)	70 °C	3.3 V	100 mV	Open Frame	Through Hole	69 %	Adjustable Output Universal Input	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 35.80

General part information

Open Frame AC DC Converters 1 Output 24V 1.1A 85 ~ 264 VAC Input
