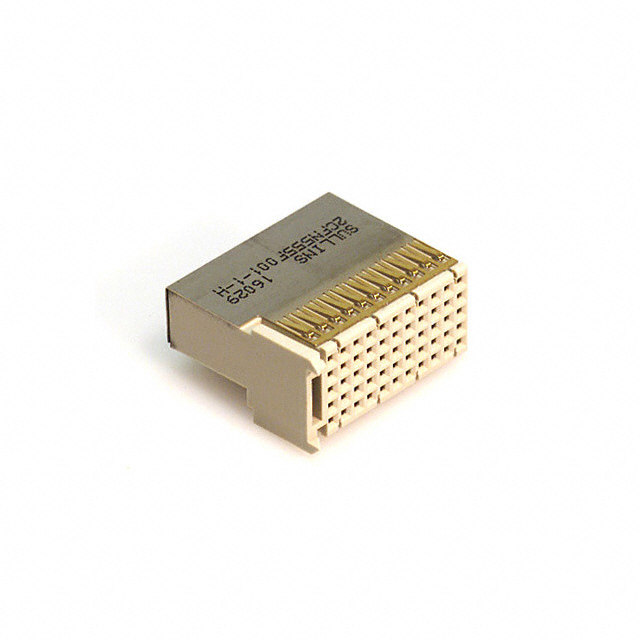

2CF555F001-1-H
ObsoleteSullins Connector Solutions
CONN RECEPT 55POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2CF555F001-1-H
ObsoleteSullins Connector Solutions
CONN RECEPT 55POS 2MM PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2CF555F001-1-H |
|---|---|
| Connector Style | C 11 |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage | CompactPCI |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 1 A |
| Features | Board Guide, Upper Shield |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 55 positions |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2CF555F0 Series
55 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
