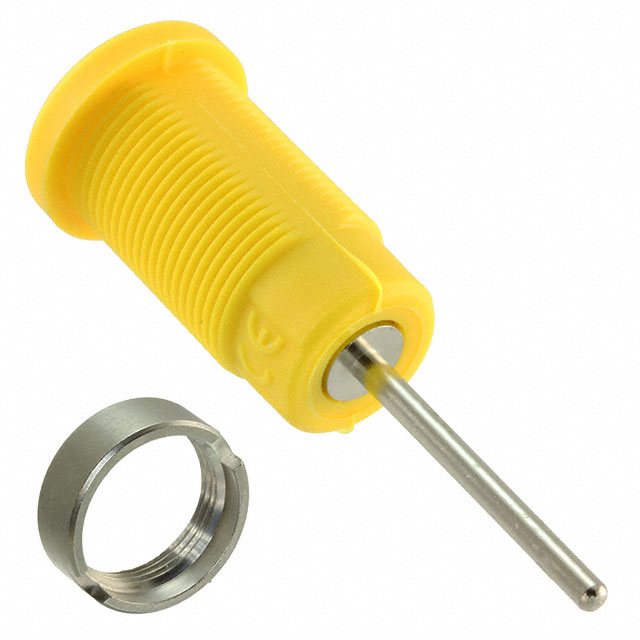

CT2906-4
ActiveCal Test Electronics
CONN BANANA JACK M 1 POS SOLDER ST CABLE MOUNT 1 PORT BAG
Deep-Dive with AI
DocumentsTest Accessories Catalog
Technical Specifications
Parameters and characteristics for this part
| Specification | CT2906-4 |
|---|---|
| Body Material | Nylon, Polyamide (PA) |
| Color | Yellow |
| Contact Finish | Nickel |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Mating End Insulated |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | Solder |
| Type | Banana Jack |
CT2906 Series
| Part | Type | Contact Material | Plug/Mating Plug Diameter | Color | Termination | Insulation | Gender | Body Material | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Cal Test Electronics | Banana Jack | Brass | Standard Banana | White | Solder | Mating End Insulated | Female | Nylon Polyamide (PA) | Nickel | -20 C | 80 C |
Cal Test Electronics | Banana Jack | Brass | Standard Banana | Gray | Solder | Mating End Insulated | Female | Nylon Polyamide (PA) | Nickel | -20 C | 80 C |
Cal Test Electronics | Banana Jack | Brass | Standard Banana | Red | Solder | Mating End Insulated | Female | Nylon Polyamide (PA) | Nickel | -20 C | 80 C |
Cal Test Electronics | Banana Jack | Brass | Standard Banana | Yellow | Solder | Mating End Insulated | Female | Nylon Polyamide (PA) | Nickel | -20 C | 80 C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CT2906 Series
Banana Jack Connector Standard Banana Solder Yellow
