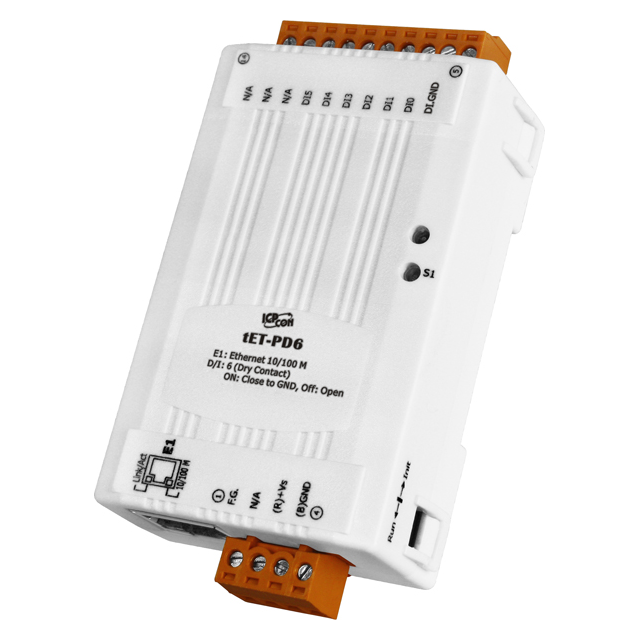

TET-PD6

Active

ICP DAS USA INC

MOD TCP I/O, 6-CH DI, DRY

Search across all available documentation for this part.

Active

ICP DAS USA INC

MOD TCP I/O, 6-CH DI, DRY

Technical Specifications

Parameters and characteristics for this part

Specification	TET-PD6

Approval Agency	CE
Mounting Type	DIN Rail
Number of Inputs and Type [custom]	Digital
Number of Inputs and Type [custom]	6
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Termination Style	Screw Terminal
Type	Input Module
Voltage - Supply [Max]	48 V
Voltage - Supply [Min]	12 V

Part	Mounting Type	Type	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Outputs and Type	Number of Outputs and Type
ICP DAS USA INC TET-P2R2	DIN Rail	Input Output (I/O) Module	Screw Terminal	12 V	48 V	CE	-25 °C	75 ░C	Digital	2	Relay	2
ICP DAS USA INC TET-P2C2	DIN Rail	Input Output (I/O) Module	Screw Terminal	12 V	48 V	CE	-25 °C	75 ░C	Digital	2			Digital	2
ICP DAS USA INC TET-PD6	DIN Rail	Input Module	Screw Terminal	12 V	48 V	CE	-25 °C	75 ░C	Digital	6
ICP DAS USA INC TET-P2POR2	DIN Rail	Input Output (I/O) Module	Screw Terminal	12 V	48 V	CE	-25 °C	75 ░C	Digital	2	Relay	2
ICP DAS USA INC TET-PD2R1	DIN Rail	Input Output (I/O) Module	Screw Terminal	12 V	48 V	CE	-25 °C	75 ░C	Digital	2	Relay	2
ICP DAS USA INC TET-P2A2	DIN Rail	Input Output (I/O) Module	Screw Terminal	12 V	48 V	CE	-25 °C	75 ░C	Digital	2			Digital	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 209.00

General part information

Input Module DIN Rail 12 ~ 48VDC

Technical documentation and resources
