IQS550BLQNR
Azoteq Corporation
150CH. TRACKPAD/TOUCH SCREEN CON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IQS550BLQNR
Azoteq Corporation
150CH. TRACKPAD/TOUCH SCREEN CON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IQS550BLQNR |
|---|---|
| Current - Supply | 80 mA |
| Interface | I2C |
| Mounting Type | Surface Mount |
| Number of Inputs | 150 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 48-UFQFN Exposed Pad |
| Proximity Detection | True |
| Resolution | 8 b |

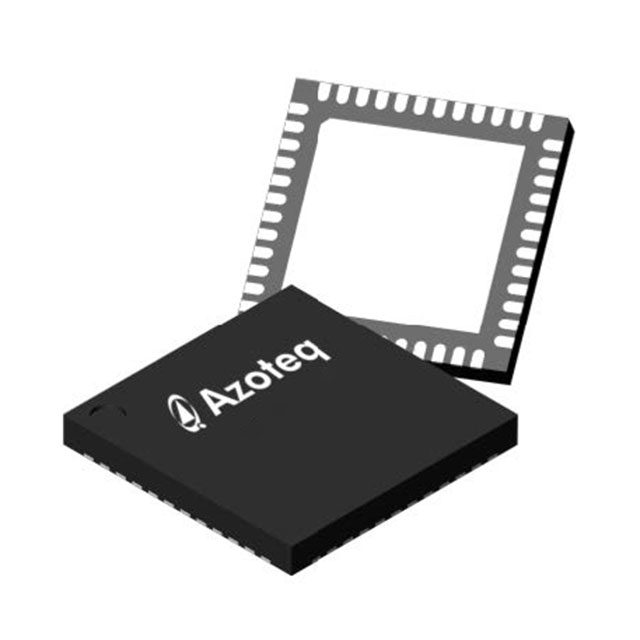

| Supplier Device Package | 48-QFN (7x7) |
| Type | Buttons |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.82 | |
| 10 | $ 2.30 | |||
| 25 | $ 1.87 | |||
| 50 | $ 1.74 | |||
| 100 | $ 1.65 | |||
| 500 | $ 1.39 | |||
| 1000 | $ 1.30 | |||
| Digi-Reel® | 1 | $ 2.82 | ||
| 10 | $ 2.30 | |||
| 25 | $ 1.87 | |||
| 50 | $ 1.74 | |||
| 100 | $ 1.65 | |||
| 500 | $ 1.39 | |||
| 1000 | $ 1.30 | |||
| Tape & Reel (TR) | 2500 | $ 1.26 | ||
| 5000 | $ 1.22 | |||
| 7500 | $ 1.19 | |||
Description
General part information
IQS550 Series
Capacitive Touch Buttons 48-QFN (7x7)
