C6353A.41.10

Active

Prysmian Group

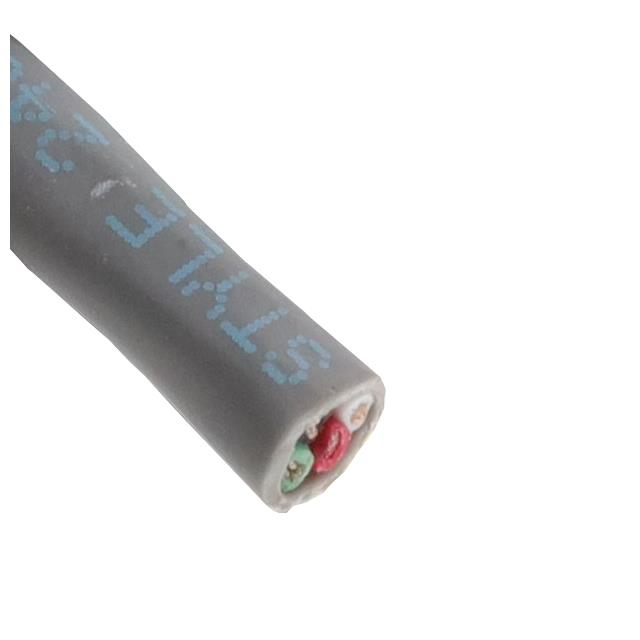

CABLE 4COND 20AWG GRAY 100'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 20AWG GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C6353A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	5.97 mm
Jacket (Insulation) Diameter [diameter]	0.235 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m, 152.4 m
Length [x]	100 ft, 500 '
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Number of Conductors	Length [x]	Length [x]	Wire Gauge	Conductor Material	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Voltage
Prysmian Group C6353A.41.10	Communication Control	-20 C	80 C	Poly-Vinyl Chloride (PVC)	4	30.5 m 152.4 m	100 ft 500 '	20 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	5.97 mm	0.235 in	Multi-Conductor	1000 ft	304.8 m	28	7	Gray	300 V
Prysmian Group C6353A.46.10	Communication Control	-20 C	80 C	Poly-Vinyl Chloride (PVC)	4			20 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	5.97 mm	0.235 in	Multi-Conductor			28	7	Gray	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 20 AWG 500.0' (152.4m)
