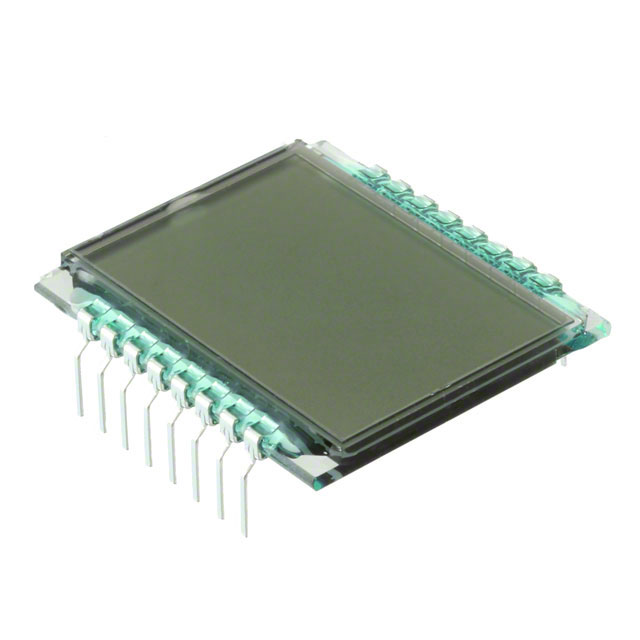

LCD-A2X1C50TR
ActiveLumex Opto/Components Inc.
LCD MOD 3 DIG 2.5 X 1 REFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCD-A2X1C50TR
ActiveLumex Opto/Components Inc.
LCD MOD 3 DIG 2.5 X 1 REFLECTIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCD-A2X1C50TR |
|---|---|
| Background Color | Gray |
| Backlight | Without Backlight |
| Character Format | 7-Segment |
| Character Size [custom] | 7 mm |
| Character Size [custom] | 12.17 mm |
| Display Format [x] | 2.5 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | TN - Twisted Nematic |
| Interface | Parallel |
| Number of Characters [custom] | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Text Color | Black |
| Viewing Area [x] | 26 mm |
| Viewing Area [y] | 17.17 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.36 | |
| 10 | $ 1.57 | |||
| 384 | $ 1.21 | |||
| 768 | $ 1.20 | |||
Description
General part information
LCD-A2 Series
Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight Parallel 30.00mm x 26.17mm x 2.80mm
