316-025-521-178
ActiveEDAC Inc.

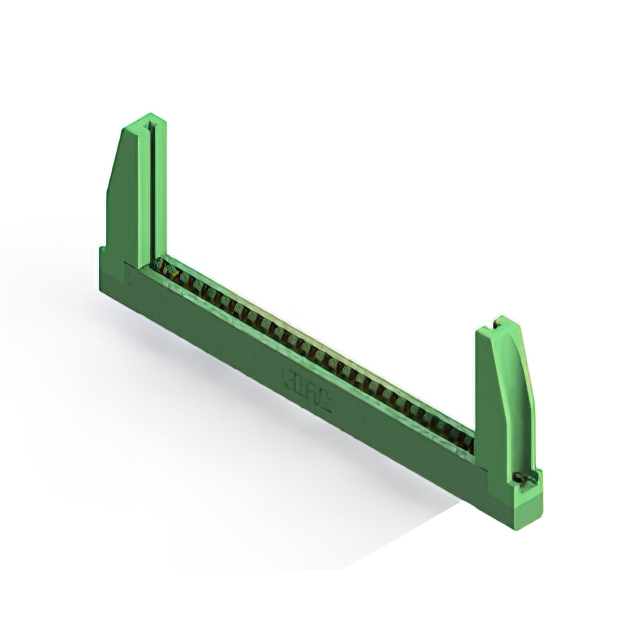

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 25 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
316-025-521-178
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 25 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 316-025-521-178 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
316-025 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Number of Positions | Termination Rows | Color | Contact Finish | Pitch [x] | Pitch [x] | Contact Material | Card Type | Mounting Type | Gender | Contact Type | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Read Out | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 50 | 1 | Green | Tin | 0.156 in | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | Panel Mount Through Hole | Female | Cantilever | 25 | -40 °C | 105 ░C | Solder | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Polyester Thermoplastic | Dual | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 50 | 1 | Green | Tin | 0.156 in | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | Through Hole | Female | Cantilever | 25 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | Dual | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 50 | 1 | Green | Gold | 0.156 in | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | Through Hole | Female | Cantilever | 25 | -40 °C | 105 ░C | Solder | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Dual | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 50 | 1 | Green | Tin | 0.156 in | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | Female | Cantilever | 25 | -40 °C | 105 ░C | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Dual | Card Guides | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 50 | 1 | Green | Gold | 0.156 in | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | Female | Cantilever | 25 | -40 °C | 105 ░C | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Dual | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 50 | 1 | Green | Gold | 0.156 in | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | Female | Cantilever | 25 | -40 °C | 105 ░C | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Dual | 10 Áin | 0.25 Ám | Card Guides | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 50 | 1 | Green | Tin | 0.156 in | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | Panel Mount Through Hole | Female | Cantilever | 25 | -40 °C | 105 ░C | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Dual | Card Guides | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 50 | 1 | Green | Gold | 0.156 in | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | Through Hole | Female | Cantilever | 25 | -40 °C | 105 ░C | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Dual | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 50 | 1 | Green | Gold | 0.156 in | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | Through Hole | Female | Cantilever | 25 | -40 °C | 105 ░C | Solder | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Polyester Thermoplastic | Dual | 10 Áin | 0.25 Ám | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 50 | 1 | Green | Tin | 0.156 in | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | Panel Mount Through Hole | Female | Cantilever | 25 | -40 °C | 105 ░C | Solder | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Polyester Thermoplastic | Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
316-025 Series
50 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
