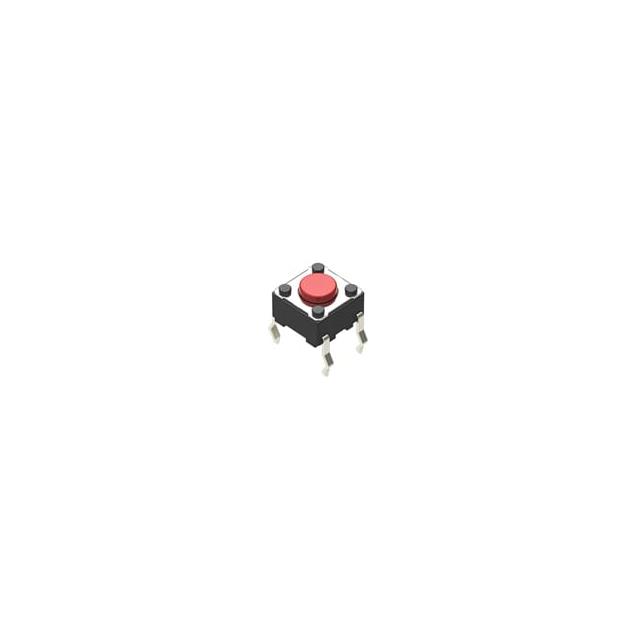

SKHHAQA010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKHHAQA010

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Switch Function	Outline [y]	Outline [x]	Contact Rating @ Voltage	Termination Style	Switch Travel	Mounting Type	Actuator Height off PCB, Vertical	Circuit	Illumination	Actuator Orientation	Actuator Type	Operating Force	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]
Alps Alpine SKHHANA010	Off-Mom	6 mm	6 mm	0.05 A 12 VDC	PC Pin	0.25 mm	Through Hole	9.5 mm	SPST-NO	Non-Illuminated	Top Actuated	Standard	100 gf	1000000 Cycles	90 °C	-40 °C
Alps Alpine SKHHAQA010	Off-Mom	6 mm	6 mm	0.05 A 12 VDC	PC Pin	0.25 mm	Through Hole		SPST-NO	Non-Illuminated	Top Actuated	Standard	260 gf	200000 Cycles	90 °C	-40 °C	4.3 mm
Alps Alpine SKHHAJA010	Off-Mom	6 mm	6 mm	0.05 A 12 VDC	PC Pin	0.25 mm	Through Hole		SPST-NO	Non-Illuminated	Top Actuated	Standard		1000000 Cycles	90 °C	-40 °C	4.3 mm
Alps Alpine SKHHAMA010	Off-Mom	6 mm	6 mm	0.05 A 12 VDC	PC Pin	0.25 mm	Through Hole	5 mm	SPST-NO	Non-Illuminated	Top Actuated	Standard		500000 Cycles	90 °C	-40 °C
Alps Alpine SKHHARA010	Off-Mom	6 mm	6 mm	0.05 A 12 VDC	PC Pin	0.25 mm	Through Hole	5 mm	SPST-NO	Non-Illuminated	Top Actuated	Standard	260 gf	200000 Cycles	90 °C	-40 °C
Alps Alpine SKHHAKA010	Off-Mom	6 mm	6 mm	0.05 A 12 VDC	PC Pin	0.25 mm	Through Hole	5 mm	SPST-NO	Non-Illuminated	Top Actuated	Standard	100 gf	1000000 Cycles	90 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
