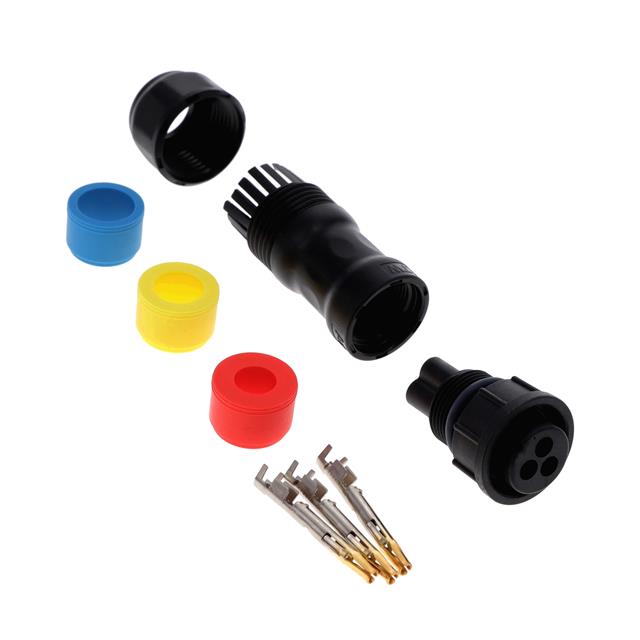

ACC-03BFFC-LL7AP0

Active

Amphenol LTW

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACC-03BFFC-LL7AP0

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VDC

ACC-03BFFC Series

Part	Backshell Material, Plating	Shell Material	Primary Material	Shell Size - Insert	Contact Finish - Mating	Number of Positions	Contact Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Material Flammability Rating	Voltage Rating	Termination	Features	Ingress Protection	Connector Type	Color	Orientation	Mounting Type	Insert Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Fastening Type	Cable Opening [custom]	Cable Opening [custom]
Amphenol LTW ACC-03BFFC-LL7SP0	Glass Filled Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)	Plastic	C	Gold	3	Copper Alloy	8 mm	6 mm	0.315 in	0.236 in	UL94 V-0	250 VDC	Crimp	Backshell	IP67 - Dust Tight Waterproof	Female Sockets Plug	Black	Keyed	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	20 A	-40 °C	105 ░C	Unshielded
Amphenol LTW ACC-03BFFC-SL7MP0	Glass Filled Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)	Plastic	C	Gold	3	Copper Alloy	10 mm	8 mm	0.394 in	0.315 in	UL94 V-0	250 VDC	Crimp	Backshell	IP67 - Dust Tight Waterproof	Female Sockets Plug	Black	Keyed	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	20 A	-40 °C	105 ░C	Unshielded
Amphenol LTW ACC-03BFFC-LL7AP0	Glass Filled Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)	Plastic	C	Gold	3	Copper Alloy					UL94 V-0	300 VDC	Crimp	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Female Sockets Plug	Black	Keyed	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	20 A	-40 °C	105 ░C	Unshielded	Bayonet Lock
Amphenol LTW ACC-03BFFC-SL7LP0	Glass Filled Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)	Plastic	C	Gold	3	Copper Alloy					UL94 V-0	250 VDC	Crimp	Backshell	IP67 - Dust Tight Waterproof	Female Sockets Plug	Black	Keyed	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	20 A	-40 °C	105 ░C	Unshielded		10 mm 12 mm	0.394 in 0.472 in
Amphenol LTW ACC-03BFFC-LL7MP0	Glass Filled Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)	Plastic	C	Gold	3	Copper Alloy	10 mm	8 mm	0.394 in	0.315 in	UL94 V-0	250 VDC	Crimp	Backshell	IP67 - Dust Tight Waterproof	Female Sockets Plug	Black	Keyed	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	20 A	-40 °C	105 ░C	Unshielded
Amphenol LTW ACC-03BFFC-SL7SP0	Glass Filled Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)	Plastic	C	Gold	3	Copper Alloy	8 mm	6 mm	0.315 in	0.236 in	UL94 V-0	250 VDC	Crimp	Backshell	IP67 - Dust Tight Waterproof	Female Sockets Plug	Black	Keyed	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	20 A	-40 °C	105 ░C	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.65
		10	$ 5.98
		25	$ 5.63
		50	$ 5.49
		100	$ 5.35
		250	$ 5.09

Description

General part information

ACC-03BFFC Series

3 (Data) Position Circular Connector Plug, Female Sockets Crimp
