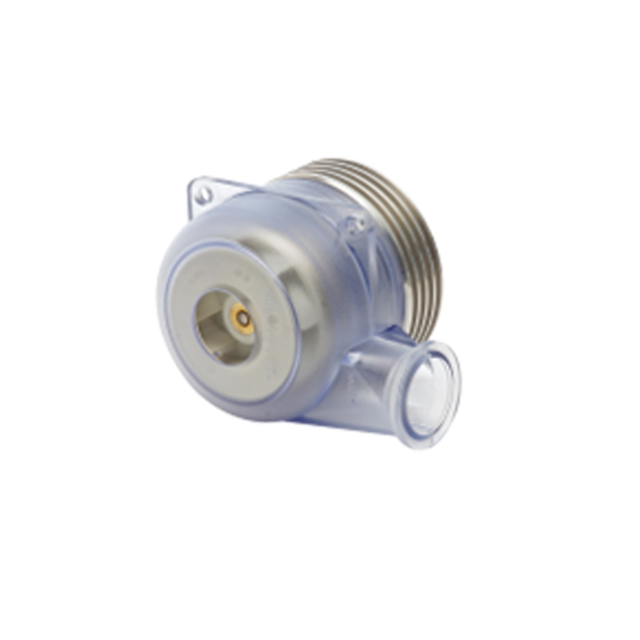

U51DL-012KK-4
ActiveMicronel USA
FAN BLOWER 65X48.5MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
U51DL-012KK-4
ActiveMicronel USA
FAN BLOWER 65X48.5MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | U51DL-012KK-4 |
|---|---|
| Air Flow | 15.5 CFM |
| Air Flow | 0.434 m³/min |
| Approval Agency | CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 2.7 A |
| Fan Type | Blower |
| Features | Speed Sensor (Tach), Speed Control (SP) |
| Lifetime @ Temp. | 15000 Hrs |
| Material - Blade | Polyamide (PA6), Nylon 6 |
| Material - Frame | Polycarbonate (PC) |
| Noise | 61 dB(A) |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 40200 RPM |
| Size / Dimension [x] | 65 mm |
| Size / Dimension [y] | 50 mm |
| Static Pressure | 4200 Pa |
| Static Pressure | 16.861 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 15 V |
| Voltage Range [Min] | 9 V |
| Width [y] | 48.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 343.00 | |
Description
General part information
U51DL-012KK-4
Fan Blower 12VDC Rectangular/Rounded - 65mm L x 50mm H Ball 15.5 CFM (0.434m³/min) 4 Wire Leads
Documents
Technical documentation and resources
No documents available
