XC7WH126DC,125
ActiveFreescale Semiconductor - NXP
XC7WH126 - DUAL BUFFER/LINE DRIVER; 3-STATE SSOP 8-PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XC7WH126DC,125
ActiveFreescale Semiconductor - NXP
XC7WH126 - DUAL BUFFER/LINE DRIVER; 3-STATE SSOP 8-PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XC7WH126DC,125 |
|---|---|
| Current - Output High, Low [custom] | 8 mA |
| Current - Output High, Low [custom] | 8 mA |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 1 |
| Number of Elements | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |

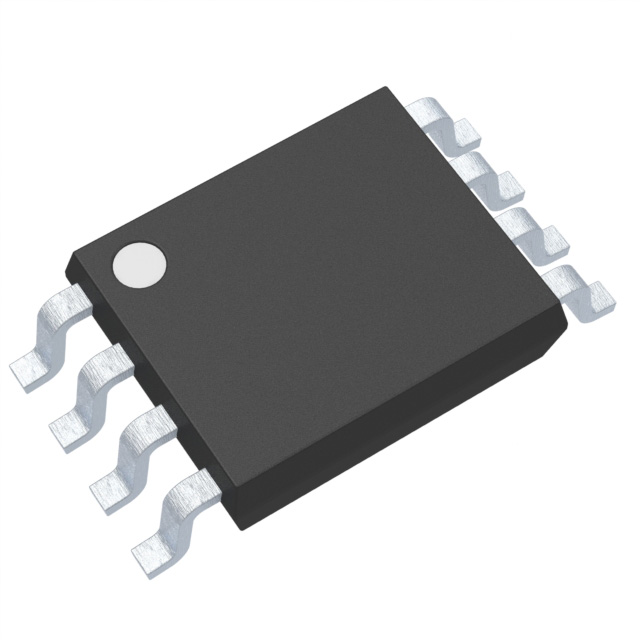

| Package / Case | 8-VFSOP |
| Package / Case [y] | 2.3 mm |
| Package / Case [y] | 0.091 in |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| Digi-Reel® | 1 | $ 0.83 | ||
| Tape & Reel (TR) | 3000 | $ 0.31 | ||
| 6000 | $ 0.29 | |||
| 15000 | $ 0.28 | |||
| 30000 | $ 0.27 | |||
Description
General part information
XC7WH126 Series
Buffer, Non-Inverting 2 Element 1 Bit per Element 3-State Output 8-VSSOP
