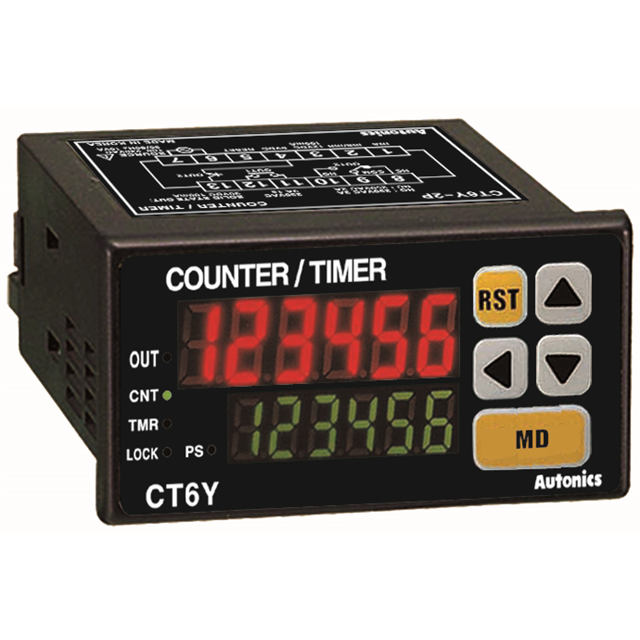

CT6Y-1P4

Active

AUTONICS

COUNTER TIMER 100-240VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT6Y-1P4

Active

AUTONICS

COUNTER TIMER 100-240VAC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT6Y-1P4

Count Rate	Multiple
Display Characters - Height	0.374 in, 0.275 in
Display Type	LED - Green, Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Input Type	No Voltage, Voltage
Number of Characters Per Row	6
Number of Characters Per Row	6
Operating Mode	Up, Down
Output Type	Relay, Solid State
Panel Cutout Dimensions [x]	68 mm
Panel Cutout Dimensions [y]	31.5 mm
Reset	External, Front Panel
Termination Style	Screw Terminal
Time Format	Multiple
Type	Tachometer, Timer, Preset, Batch, Totalizer
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

CT6Y Series

Part	Operating Mode	Display Type	Ingress Protection	Input Type	Time Format	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Characters - Height	Reset	Number of Characters Per Row	Number of Characters Per Row	Termination Style	Count Rate	Output Type	Voltage - Supply
AUTONICS CT6Y-2P4	Down Up	LED - Green Red Characters	IP65 - Dust Tight Water Resistant	No Voltage Voltage	Multiple	68 mm	31.5 mm	Batch Preset Tachometer Timer Totalizer	100 VAC	240 VAC	0.275 in 0.374 in	External Front Panel	6	6	Screw Terminal	Multiple	Relay (2) Solid State
AUTONICS CT6Y-1P4	Down Up	LED - Green Red Characters	IP65 - Dust Tight Water Resistant	No Voltage Voltage	Multiple	68 mm	31.5 mm	Batch Preset Tachometer Timer Totalizer	100 VAC	240 VAC	0.275 in 0.374 in	External Front Panel	6	6	Screw Terminal	Multiple	Relay Solid State
AUTONICS CT6Y-2P4T	Down Up	LED - Green Red Characters	IP65 - Dust Tight Water Resistant	No Voltage Voltage	Multiple	68 mm	31.5 mm	Batch Preset Tachometer Timer Totalizer	100 VAC	240 VAC	0.275 in 0.374 in	External Front Panel	6	6	Screw Terminal	Multiple	Relay (2) Solid State
AUTONICS CT6Y-I4	Down Up	LED - Green Red Characters	IP65 - Dust Tight Water Resistant	No Voltage Voltage	Multiple	68 mm	31.5 mm	Batch Preset Tachometer Timer Totalizer	100 VAC	240 VAC	0.275 in 0.374 in	External Front Panel	6	6	Screw Terminal	Multiple
AUTONICS CT6Y-I2	Down Up	LED - Green Red Characters	IP65 - Dust Tight Water Resistant	No Voltage Voltage	Multiple	68 mm	31.5 mm	Batch Preset Tachometer Timer Totalizer	24 V	48 V	0.275 in 0.374 in	External Front Panel	6	6	Screw Terminal	Multiple		24 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 140.00

Description

General part information

CT6Y Series

Batch, Preset, Tachometer, Timer, Totalizer 100 ~ 240VAC Panel Mount
