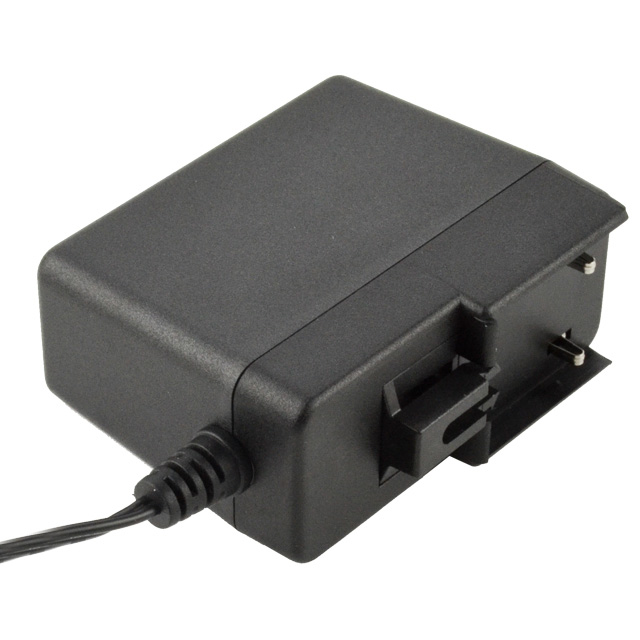

SMI36-24-K-P5

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 24V 36W

Deep-Dive with AI

Search across all available documentation for this part.

SMI36-24-K-P5

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 24V 36W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMI36-24-K-P5

Applications	ITE (Commercial)
Approval Agency	CB Scheme, UL, PSE, EN, CCC, FCC, IEC, CSA
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.5 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	3.1 in
Size / Dimension [x]	78.5 mm
Size / Dimension [y]	1.34 in
Size / Dimension [y]	34 mm
Size / Dimension [z]	2.6 in
Size / Dimension [z]	66 mm
Standard Number	C22.2 No. 60950-1, 55024, 62368-1, 60950-1, 61000-3-3, 55032 Class B, 61000-3-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V
Weight	160 g
Weight	0.35 lb

SMI36 Series

Part	Input Connector	Form	Output Connector	Voltage - Output	Cord Length	Cord Length	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Operating Temperature [Max]	Current - Output (Max) [Max]	No Load Power Consumption	Power (Watts)	Approval Agency	Input Type	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Standard Number	Polarization	No Load Power Consumption [Max]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [diameter]	Output Connector [x]	Weight	Weight	Output Connector [z]	Output Connector [y]
CUI Inc. SMI36-12-V-ST	Multi-Blade (Included)	Wall Mount (Class II)	Stripped Tinned Wire Leads	12 V	1.5 m	59 in	International	90 VAC	264 VAC	CoC Tier 2 Level VI	40 °C	3 A	100 mW	36 W	CB Scheme CCC CSA EN FCC IEC PSE UL	Multi-Blade (Included)	ITE (Commercial)	2.6 in	1.39 in	35.3 mm	78.5 mm	66 mm	3.09 "	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1
CUI Inc. SMI36-5-V-P13	Multi-Blade (Included)	Desktop (Class II)	Barrel Plug	5 V	1 m	39.4 "	International	90 VAC	264 VAC	CoC Tier 2 Level VI	40 °C	5 A		25 W	CCC CE cULus FCC PSE RCM	Cord	ITE (Commercial)	2.6 in	1.39 in	35.3 mm	78.5 mm	66 mm	3.09 "		Positive Center	75 mW	9.5 mm	4 mm	1.7 mm
CUI Inc. SMI36-48-V-P5	Multi-Blade	Wall Mount (Class II)	Barrel Plug	48 V	1.5 m	59 in	International	90 VAC	264 VAC	CoC Tier 2 Level VI	40 °C	750 mA	100 mW	36 W	CB Scheme CCC CSA EN FCC IEC PSE UL	Multi-Blade (Included)	ITE (Commercial)	2.6 in	1.34 in	34 mm	78.5 mm	66 mm	3.1 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center					2.1 mm 5.5 mm	9.5 mm	160 g	0.35 lb
CUI Inc. SMI36-5-V-P5	Multi-Blade	Wall Mount (Class II)	Barrel Plug	5 V	1 m	39.4 "	International	90 VAC	264 VAC	CoC Tier 2 Level VI	40 °C	5 A	100 mW	25 W	CB Scheme CCC CSA EN FCC IEC PSE UL	Multi-Blade (Included)	ITE (Commercial)	2.6 in	1.34 in	34 mm	78.5 mm	66 mm	3.1 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center					2.1 mm 5.5 mm	9.5 mm	160 g	0.35 lb
CUI Inc. SMI36-24-E-ST	Multi-Blade (Included)	Wall Mount (Class II)	Stripped Tinned Wire Leads	24 V	1.5 m	59 in	Europe	90 VAC	264 VAC	CoC Tier 2 Level VI	40 °C	1.5 A	100 mW	36 W	CB Scheme CCC CSA EN FCC IEC PSE UL	Multi-Blade (Included)	ITE (Commercial)	2.6 in	1.39 in	35.3 mm	78.5 mm	66 mm	3.09 "	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1
CUI Inc. SMI36-24-K-P5	Multi-Blade	Wall Mount (Class II)	Barrel Plug	24 V	1.5 m	59 in	International	90 VAC	264 VAC	CoC Tier 2 Level VI	40 °C	1.5 A	100 mW	36 W	CB Scheme CCC CSA EN FCC IEC PSE UL	Multi-Blade (Sold Separately)	ITE (Commercial)	2.6 in	1.34 in	34 mm	78.5 mm	66 mm	3.1 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center					2.1 mm 5.5 mm	9.5 mm	160 g	0.35 lb
CUI Inc. SMI36-15-K-P6R	Multi-Blade	Wall Mount (Class II)	Barrel Plug R/A	15 VDC	1.5 m	59 in	International	90 VAC	264 VAC	CoC Tier 2 Level VI	40 °C	2.4 A	100 mW	36 W	CB Scheme CCC CSA EN FCC IEC PSE UL	Multi-Blade (Sold Separately)	ITE (Commercial)	2.6 in	1.34 in	34 mm	78.5 mm	66 mm	3.1 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center					2.5 mm 5.5 mm	9.5 mm	160 g	0.35 lb
CUI Inc. SMI36-9-V-P6	Multi-Blade	Wall Mount (Class II)	Barrel Plug	9 V	1.5 m	59 in	International	90 VAC	264 VAC	CoC Tier 2 Level VI	40 °C	3.34 A	100 mW	30 W	CB Scheme CCC CSA EN FCC IEC PSE UL	Multi-Blade (Included)	ITE (Commercial)	2.6 in	1.34 in	34 mm	78.5 mm	66 mm	3.1 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center					2.5 mm 5.5 mm	9.5 mm	160 g	0.35 lb
CUI Inc. SMI36-9-V-P5R	Multi-Blade	Wall Mount (Class II)	Barrel Plug R/A	9 V	1.5 m	59 in	International	90 VAC	264 VAC	CoC Tier 2 Level VI	40 °C	3.34 A	100 mW	30 W	CB Scheme CCC CSA EN FCC IEC PSE UL	Multi-Blade (Included)	ITE (Commercial)	2.6 in	1.34 in	34 mm	78.5 mm	66 mm	3.1 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center						2.1 mm	160 g	0.35 lb	9.5 mm	5.5 mm
CUI Inc. SMI36-15-V-P5	Multi-Blade	Wall Mount (Class II)	Barrel Plug	15 VDC	1.5 m	59 in	International	90 VAC	264 VAC	CoC Tier 2 Level VI	40 °C	2.4 A	100 mW	36 W	CB Scheme CCC CSA EN FCC IEC PSE UL	Multi-Blade (Included)	ITE (Commercial)	2.6 in	1.34 in	34 mm	78.5 mm	66 mm	3.1 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center					2.1 mm 5.5 mm	9.5 mm	160 g	0.35 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.85
		5	$ 17.14
		10	$ 16.84
		25	$ 16.45
		50	$ 16.17
		100	$ 15.88
		300	$ 15.45
		500	$ 15.25

Description

General part information

SMI36 Series

24V 36 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input

Documents

Technical documentation and resources

No documents available
