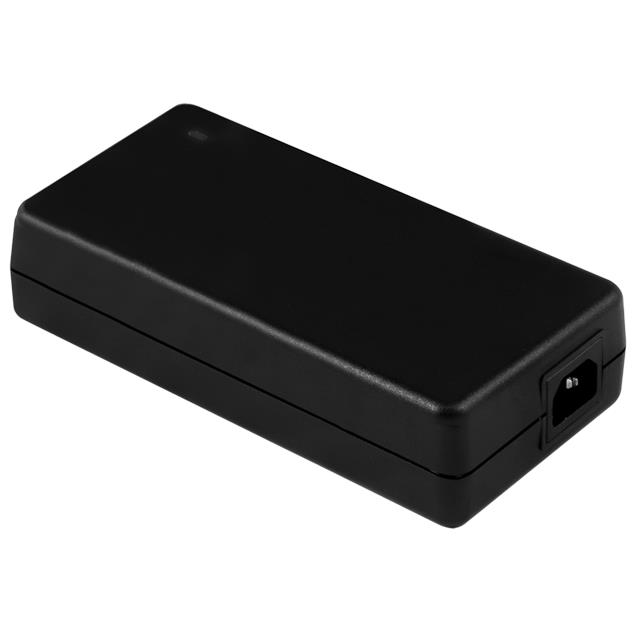

MEA-250A24C H-A
ActiveDelta Electronics
AC/DC DESKTOP ADAPTER 24V 250W
Deep-Dive with AI
Search across all available documentation for this part.
MEA-250A24C H-A
ActiveDelta Electronics
AC/DC DESKTOP ADAPTER 24V 250W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MEA-250A24C H-A |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | PSE, RCM, CE, UL, CB Scheme |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 10.42 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 5 °C |
| Output Connector | Rectangular, 6 Position |
| Power (Watts) | 250 W |
| Region Utilized | International |
| Size / Dimension [x] | 7.87 in |
| Size / Dimension [x] | 200 mm |
| Size / Dimension [y] | 3.94 in |
| Size / Dimension [y] | 100 mm |
| Size / Dimension [z] | 43 mm |
| Size / Dimension [z] | 1.69 in |
| Standard Number | 60950-1, 60601-1, 50581 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 152.32 | |
| 9 | $ 147.41 | |||
| 18 | $ 142.50 | |||
| 27 | $ 135.13 | |||
| 54 | $ 132.67 | |||
Description
General part information
MEA-250 Series
24V 250 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
