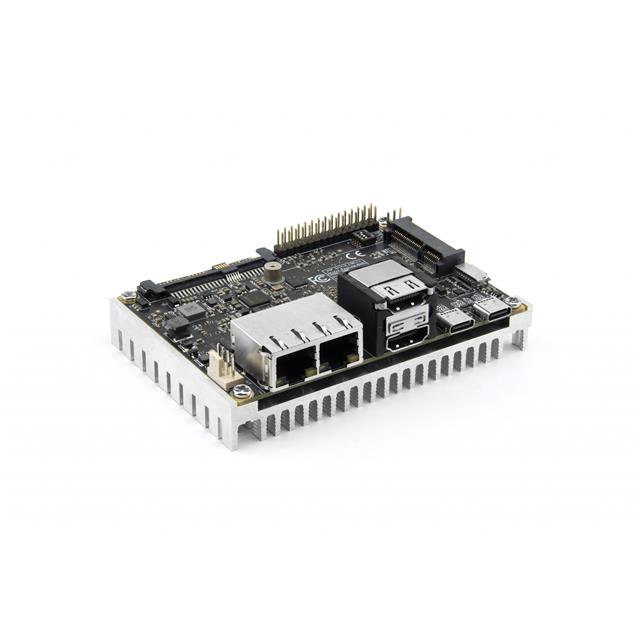

SBC-BLADE3-0432
ActiveMixtile Limited
SBC 8 CORE 4GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
SBC-BLADE3-0432
ActiveMixtile Limited
SBC 8 CORE 4GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SBC-BLADE3-0432 |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Rockchip RK3588, Octa-Core Cortex-A76/A55 |
| Digital I/O Lines | 4 |
| Ethernet | GbE (2) |
| Expansion Site/Bus | ADC, I2C, UART, SPDIF, CAN, RS-485 |
| Form Factor | Pico-ITX |
| Number of Cores | 8 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 8 W |
| RAM Capacity/Installed | 4 GB |
| Size / Dimension [x] | 100 mm |
| Size / Dimension [x] | 3.937 in |
| Size / Dimension [y] | 72 mm |
| Size / Dimension [y] | 2.834 in |
| Storage Interface | eMMC 5.1 |
| USB | USB 3.2 Gen 1 Type-C (2) |
| Video Outputs | HDMI 2.1 |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 273.93 | |
| 10 | $ 262.36 | |||
| 25 | $ 256.57 | |||
Description
General part information
SBC-BLADE3 Series
Single Board Computer 2.4GHz 8 Core 4GB RAM Rockchip RK3588, Octa-Core Cortex-A76/A55
