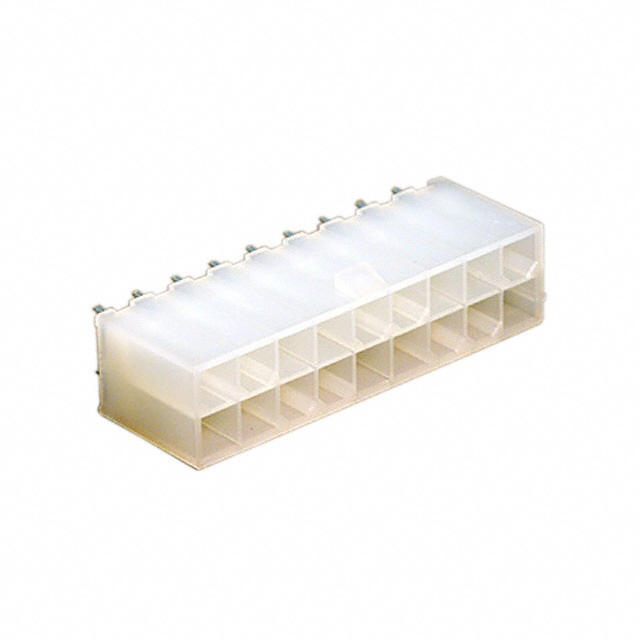

0039288180

Active

Molex

CONN HEADER VERT 18POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMini-Fit Jr Test Summary Mini-Fit Jr Color Variation Spec +1

0039288180

Active

Molex

CONN HEADER VERT 18POS 4.2MM

Deep-Dive with AI

DocumentsMini-Fit Jr Test Summary Mini-Fit Jr Color Variation Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0039288180

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	35.4 µin
Contact Finish Thickness - Mating	0.9 µm
Contact Finish Thickness - Post	35 µin
Contact Finish Thickness - Post	0.9 µm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

003928 Series

Part	Number of Rows	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Positions Loaded	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Insulation Color	Insulation Height	Insulation Height	Insulation Material	Connector Type	Fastening Type	Contact Material	Applications	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Shape	Contact Finish - Post	Style	Contact Finish - Mating	Number of Positions
Molex 0039281063	2	Solder	35.4 µin	0.9 µm	Male Pin	All	Shrouded - 4 Wall	4.2 mm	0.165 in	6	4.2 mm	0.165 in	35 µin	0.9 µm	UL94 V-2	Natural	12.8 mm	0.504 in	Polyamide (PA66) Nylon 6/6	Header	Locking Ramp	Brass	General Purpose Industrial Telecommunications	3.5 mm	0.138 in	Through Hole	Square	Tin	Board to Cable/Wire
Molex 0039287038	1	Solder	39.4 µin	1 µm	Male Pin	All	Shrouded - 4 Wall				6.71 mm	0.264 in	39.4 çin	1 çm	UL94 V-0	Natural	15 mm	0.591 in	Polyamide (PA66) Nylon 6/6	Header	Locking Ramp	Brass	General Purpose Telecommunications	3.5 mm	0.138 in	Through Hole	Circular	Tin	Board to Cable/Wire
Molex 0039288180	2	Solder	35.4 µin	0.9 µm	Male Pin	All	Shrouded - 4 Wall	4.2 mm	0.165 in	18	4.2 mm	0.165 in	35 µin	0.9 µm	UL94 V-0	Natural	12.8 mm	0.504 in	Polyamide (PA66) Nylon 6/6	Header	Locking Ramp	Brass	General Purpose Industrial Telecommunications	3.5 mm	0.138 in	Through Hole	Square	Tin	Board to Cable/Wire
Molex 0039289048	2	Solder	30 Áin	0.76 Ám	Male Pin	All	Shrouded - 4 Wall	4.2 mm	0.165 in	4	4.2 mm	0.165 in	100 µin	2.54 µm	UL94 V-0	Natural	12.8 mm	0.504 in	Polyamide (PA66) Nylon 6/6	Header	Locking Ramp	Brass	General Purpose Industrial Telecommunications	3.5 mm	0.138 in	Through Hole	Square	Tin	Board to Cable/Wire	Gold
Molex 0039288040	2	Solder	35.4 µin	0.9 µm	Male Pin	All	Shrouded - 4 Wall	4.2 mm	0.165 in	4	4.2 mm	0.165 in	35 µin	0.9 µm	UL94 V-0	Natural	12.8 mm	0.504 in	Polyamide (PA66) Nylon 6/6	Header	Locking Ramp	Brass	General Purpose Industrial Telecommunications	3.5 mm	0.138 in	Through Hole	Square	Tin	Board to Cable/Wire
Molex 0039289028	2	Solder	30 Áin	0.76 Ám	Male Pin	All	Shrouded - 4 Wall	4.2 mm	0.165 in	2			100 µin	2.54 µm	UL94 V-0	Natural	12.8 mm	0.504 in	Polyamide (PA66) Nylon 6/6	Header	Locking Ramp	Brass	General Purpose Industrial Telecommunications	3.5 mm	0.138 in	Through Hole	Square	Tin	Board to Cable/Wire	Gold
Molex 0039285106
Molex 0039281043	2	Solder	35.4 µin	0.9 µm	Male Pin	All	Shrouded - 4 Wall	4.2 mm	0.165 in	4	4.2 mm	0.165 in	35 µin	0.9 µm	UL94 V-2	Natural	12.8 mm	0.504 in	Polyamide (PA66) Nylon 6/6	Header	Locking Ramp	Brass	General Purpose Industrial Telecommunications	3.5 mm	0.138 in	Through Hole	Square	Tin	Board to Cable/Wire
Molex 0039287028
Molex 0039289168	2	Solder	30 Áin	0.76 Ám	Male Pin	All	Shrouded - 4 Wall	4.2 mm	0.165 in		4.2 mm	0.165 in	100 µin	2.54 µm	UL94 V-0	Natural	12.8 mm	0.504 in	Polyamide (PA66) Nylon 6/6	Header	Locking Ramp	Brass	General Purpose Industrial Telecommunications	3.5 mm	0.138 in	Through Hole	Square	Tin	Board to Cable/Wire	Gold	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.59
		10	$ 2.28
		150	$ 1.82
