A3A-16DA-2SV

Obsolete

Hirose Electric USA, Inc.

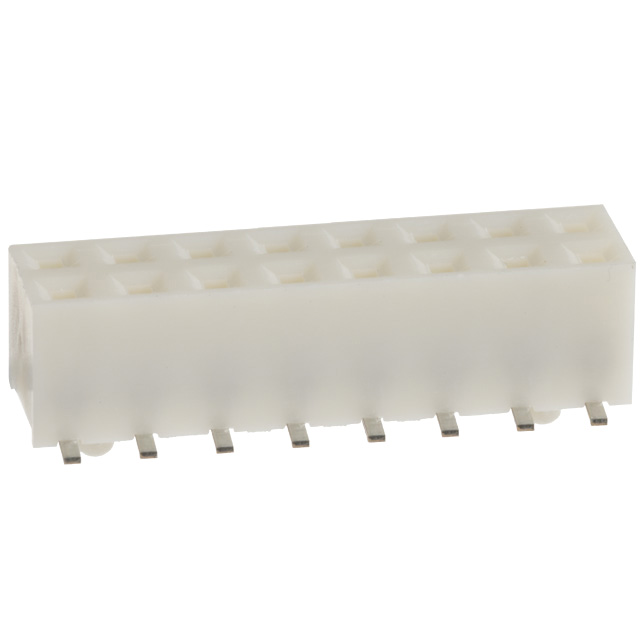

CONN RCPT 16POS 0.079 GOLD SMD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 16POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	A3A-16DA-2SV

Applications	Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Brown
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polyphenylene Sulfide (PPS)
Mated Stacking Heights	6 mm, 5.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Contact Type	Number of Positions	Insulation Material	Features	Insulation Color	Style	Contact Finish - Post	Number of Positions Loaded	Contact Shape	Material Flammability Rating	Mounting Type	Mated Stacking Heights	Row Spacing - Mating	Row Spacing - Mating	Applications	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material
Hirose Electric USA, Inc. A3A-16DA-2SV	1 çm	39.4 çin	85 °C	-55 °C	Push-Pull	0.203 Ám	8 Áin	Solder	Receptacle	0.165 in	4.2 mm	Gold	Female Socket	16	Polyphenylene Sulfide (PPS)	Board Guide	Brown	Board to Board Cable	Tin	All	Square	UL94 V-0	Surface Mount	5.1 mm 6 mm	0.079 in	2 mm	General Purpose Telecommunications	2	0.079 in	2 mm	Phosphor Bronze
Hirose Electric USA, Inc. A3A-16DA-2SV(71)	1 çm	39.4 çin	85 °C	-55 °C	Push-Pull	0.203 Ám	8 Áin	Solder	Receptacle	0.165 in	4.2 mm	Gold	Female Socket	16	Polyphenylene Sulfide (PPS)	Board Guide	Brown	Board to Board Cable	Tin	All	Square	UL94 V-0	Surface Mount	5.1 mm 6 mm	0.079 in	2 mm	General Purpose Telecommunications	2	0.079 in	2 mm	Phosphor Bronze
