TND027MP-AZ

Obsolete

Sanyo

LOWSIDE POWER SWITCH LAMP

Search across all available documentation for this part.

Obsolete

Sanyo

LOWSIDE POWER SWITCH LAMP

Technical Specifications

Parameters and characteristics for this part

Specification	TND027MP-AZ

Current - Output (Max) [Max]	1.5 A
Fault Protection	Over Temperature, Current Limiting (Fixed), Over Voltage
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Low Side
Output Type	N-Channel

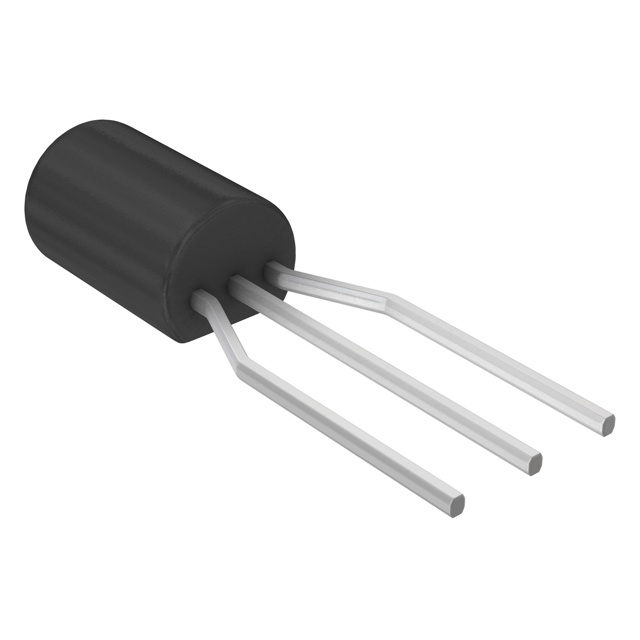

Package / Case	TO-92-3 Long Body, Formed Leads, TO-226-3
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	300 mOhm
Supplier Device Package	3-MP
Switch Type	General Purpose
Voltage - Load [Max]	40 V
Voltage - Supply (Vcc/Vdd)	False

Part	Rds On (Typ)	Output Configuration	Voltage - Supply (Vcc/Vdd)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Switch Type	Voltage - Load [Max]	Supplier Device Package	Input Type	Fault Protection	Ratio - Input:Output [custom]	Package / Case	Interface	Output Type	Mounting Type
Sanyo TND027MP-AZ	300 mOhm	Low Side		1	85 °C	-40 °C	1.5 A	General Purpose	40 V	3-MP	Non-Inverting	Current Limiting (Fixed) Over Temperature Over Voltage	1:1	Formed Leads TO-226-3 TO-92-3 Long Body	On/Off	N-Channel	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	701	$ 0.43

General part information

Power Switch/Driver 1:1 N-Channel 1.5A 3-MP
