Technical Specifications
Parameters and characteristics for this part
| Specification | 23_BMA-50-0-1/119_NE |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BMA |
| Connector Type | Female Socket, Jack |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull |
| Features | Mounting Flange |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Feature | Flange |
| Mounting Type | Through Hole, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 92.12 | |
| 10 | $ 84.53 | |||
| 25 | $ 81.28 | |||
| 50 | $ 78.57 | |||
| 100 | $ 74.24 | |||
Description
General part information
23_BMA-50 Series

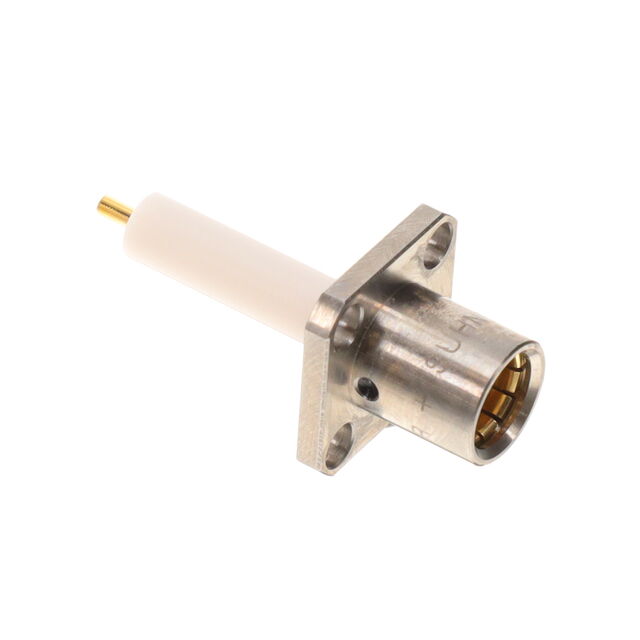

BMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole
