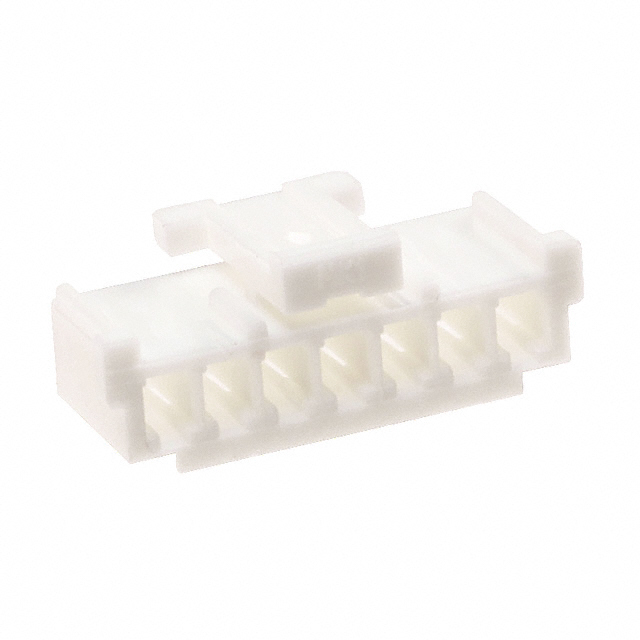

0355070700

Active

Molex

CONN RCPT HSG 7POS 2.00MM

Search across all available documentation for this part.

Active

Molex

CONN RCPT HSG 7POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Mounting Type	Connector Type	Note	Fastening Type	Contact Termination	Color	Contact Type	Pitch [x]	Pitch [x]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
Molex 0355070502	1	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Latch Lock	Crimp	Red	Female Socket	0.079 in	2 mm
Molex 0355070600	1	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Latch Lock	Crimp	Natural	Female Socket	0.079 in	2 mm	Polyester	-40 °C	105 ░C	6
Molex 0355070700	1	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Latch Lock	Crimp	Natural	Female Socket	0.079 in	2 mm	Polyester	-40 °C	105 ░C	7
Molex 0355070802	1	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Latch Lock	Crimp	Red	Female Socket	0.079 in	2 mm				8
Molex 0355070703	1	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Latch Lock	Crimp	Yellow	Female Socket	0.079 in	2 mm				7
Molex 0355070900	1	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Latch Lock	Crimp	Natural	Female Socket	0.079 in	2 mm	Polyester	-40 °C	105 ░C	9
Molex 0355070202	1	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Latch Lock	Crimp	Red	Female Socket	0.079 in	2 mm				2
Molex 0355070800	1	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Latch Lock	Crimp	Natural	Female Socket	0.079 in	2 mm	Polyester	-40 °C	105 ░C	8
Molex 0355070203	1	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Latch Lock	Crimp	Yellow	Female Socket	0.079 in	2 mm				2
Molex 0355071500	1	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Latch Lock	Crimp	Natural	Female Socket	0.079 in	2 mm	Polyester	-40 °C	105 ░C	15

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
