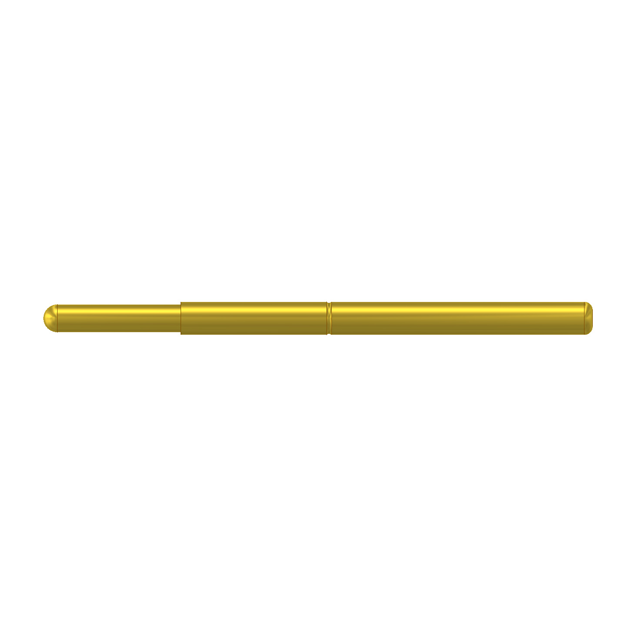

TOP125C17/400G

Active

Chip Shine / CSRF

125MIL ICT PROBE

Search across all available documentation for this part.

Active

Chip Shine / CSRF

125MIL ICT PROBE

Technical Specifications

Parameters and characteristics for this part

Specification	TOP125C17/400G

Current Rating (Amps)	3 A
Length - Overall [x]	33.02 mm
Length - Overall [x]	1.3 in
Length - Tip [x]	8.35 mm
Length - Tip [x]	0.329 in
Material - Body	Phosphor Copper, Gold Plated
Material - Tip	Beryllium Copper, Steel, Gold Plated

Part	Length - Overall [x]	Length - Overall [x]	Tip Type [diameter]	Tip Type [diameter]	Tip Type	Length - Tip [x]	Length - Tip [x]	Current Rating (Amps)	Material - Body	Material - Tip
Chip Shine / CSRF TOP125I40/200G	33.02 mm	1.3 in	4 mm	0.157 in	Spring Tip - Serrated Head	8.35 mm	0.329 in	3 A	Phosphor Copper Gold Plated	Beryllium Copper Gold Plated Steel
Chip Shine / CSRF TOP125E25/250G	33.02 mm	1.3 in	2.5 mm	0.098 in	Spring Tip - Cup Head	8.35 mm	0.329 in	3 A	Phosphor Copper Gold Plated	Beryllium Copper Gold Plated Steel
Chip Shine / CSRF TOP125C17/400G	33.02 mm	1.3 in				8.35 mm	0.329 in	3 A	Phosphor Copper Gold Plated	Beryllium Copper Gold Plated Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 A Spring Tip - Spherical Head, 0.067" (1.70mm) Dia
