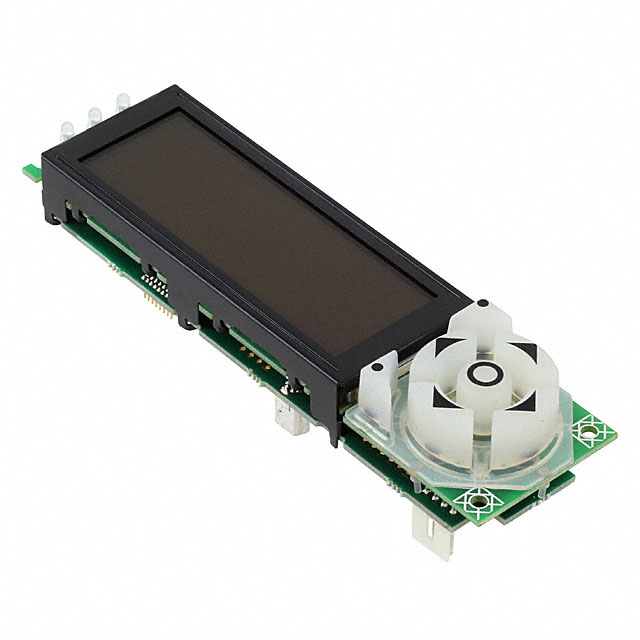

GLK19264A-7T-1U-USB-TCI

Active

Matrix Orbital

DISPL LCD GRAPH 192X64 USB BLACK

Search across all available documentation for this part.

Active

Matrix Orbital

DISPL LCD GRAPH 192X64 USB BLACK

Technical Specifications

Parameters and characteristics for this part

Part	Interface	Backlight	Background Color	Dot Pitch [y]	Dot Pitch [x]	Viewing Area [x]	Viewing Area [z]	Dot Pixels [x]	Dot Pixels [y]	Display Mode	Graphics Color	Display Type	Dot Size [y]	Dot Size [x]	Viewing Area [y]
Matrix Orbital GLK19264A-7T-1U-USB-WB	USB	LED - White	Blue	0.39 mm	0.39 mm	98 mm	28.4 mm	192	64	Transmissive	White	Monochrome	0.36 mm	0.36 mm
Matrix Orbital GLK19264A-7T-1U-WB-VPT	I2C RS-232 TTL		Blue	0.39 mm	0.39 mm		24.93 mm	192	64		White	LCD - Monochrome	0.36 mm	0.36 mm	74.85 mm
Matrix Orbital GLK19264A-7T-1U-422-YG-VPT-E			Green Yellow	0.39 mm	0.39 mm		24.93 mm	192	64		Black	LCD - Monochrome	0.36 mm	0.36 mm	74.85 mm
Matrix Orbital GLK19264A-7T-1U-FGW-E	I2C RS-232 TTL		White	0.39 mm	0.39 mm		24.93 mm	192	64		Gray	LCD - Monochrome	0.36 mm	0.36 mm	74.85 mm
Matrix Orbital GLK19264A-7T-1U-USB-YG	USB		Green	0.39 mm	0.39 mm	98 mm	28.4 mm	192	64	Transmissive	Gray	Monochrome	0.36 mm	0.36 mm
Matrix Orbital GLK19264A-7T-1U-YG-VPT	I2C RS-232 TTL		Green Yellow	0.39 mm	0.39 mm		24.93 mm	192	64		Black	LCD - Monochrome	0.36 mm	0.36 mm	74.85 mm
Matrix Orbital GLK19264A-7T-1U-USB-FGW	USB	LED - White	White	0.39 mm	0.39 mm	98 mm	28.4 mm	192	64	Transmissive	Gray	Monochrome	0.36 mm	0.36 mm
Matrix Orbital GLK19264A-7T-1U-FGW-VPT-E	I2C RS-232 TTL		White	0.39 mm	0.39 mm		24.93 mm	192	64		Gray	LCD - Monochrome	0.36 mm	0.36 mm	74.85 mm
Matrix Orbital GLK19264A-7T-1U-422-TCI-VPT			Black	0.39 mm	0.39 mm		24.93 mm	192	64		Blue Green Red	TFT - Color	0.36 mm	0.36 mm	74.85 mm
Matrix Orbital GLK19264A-7T-1U-USB-TCI	USB	LED - White	Black	0.39 mm	0.39 mm	98 mm	28.4 mm	192	64	Transmissive	Blue Green Red	Monochrome	0.36 mm	0.36 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) Monochrome USB 192 x 64
