W22S2-HW-10/01

Active

c3controls

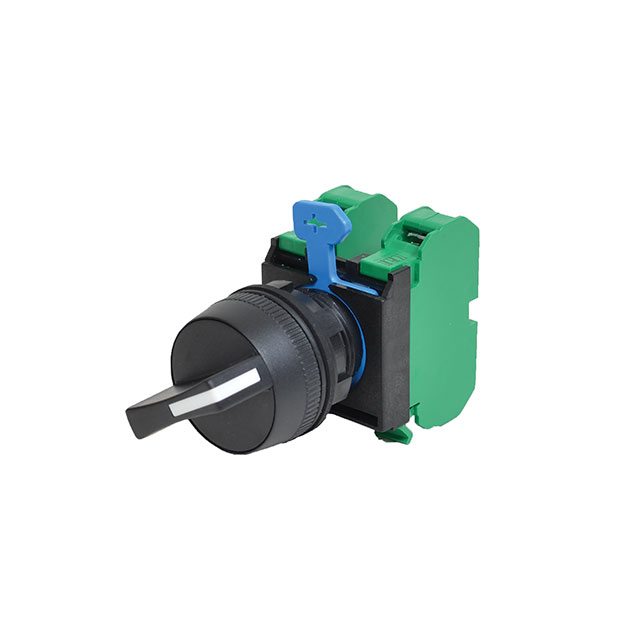

SWITCH SELECT 2POS DPST 10A 72V

Search across all available documentation for this part.

Active

c3controls

SWITCH SELECT 2POS DPST 10A 72V

Technical Specifications

Parameters and characteristics for this part

Specification	W22S2-HW-10/01

Approval Agency	cULus, CE
Circuit	DPST-NO/NC
Current Rating (Amps)	2.5 A, 10 A
Depth Behind Flange	68.6 mm
Illumination	Non-Illuminated
Ingress Protection	IP66
Mechanical Life	500000 Cycles
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22.5 mm
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	72 V
Voltage Rating - DC	28 V

Part	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Current Rating (Amps)	Depth Behind Flange	Termination Style	Mechanical Life	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit	Illumination	Approval Agency	Type	Number of Positions	Ingress Protection	Actuator Type	Requires	(Select First, Then Apply Filters) Compatible Series
c3controls W22S2-HW-10/01	Off-On On-Off	-40 °C	55 °C	28 V	2.5 A 10 A	68.6 mm	Screw Terminal	500000 Cycles	72 V	22.5 mm	DPST-NO/NC	Non-Illuminated	CE cULus	Standard	2	IP66
c3controls W22S2-HW-10	Off-On	-40 °C	55 °C	28 V	2.5 A 10 A	45.6 mm	Screw Terminal	500000 Cycles	72 V	22.5 mm	SPST-NO	Non-Illuminated	CE cULus	Standard	2	IP66
c3controls W22S2-HW										22.5 mm		Non-Illuminated		Maintained			Selector	Contact Block(s)	22 c3controls

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.60

General part information

Selector Switch 2 Position DPST-NO/NC 10A (AC), 2.5A (DC) 72 V Panel Mount
