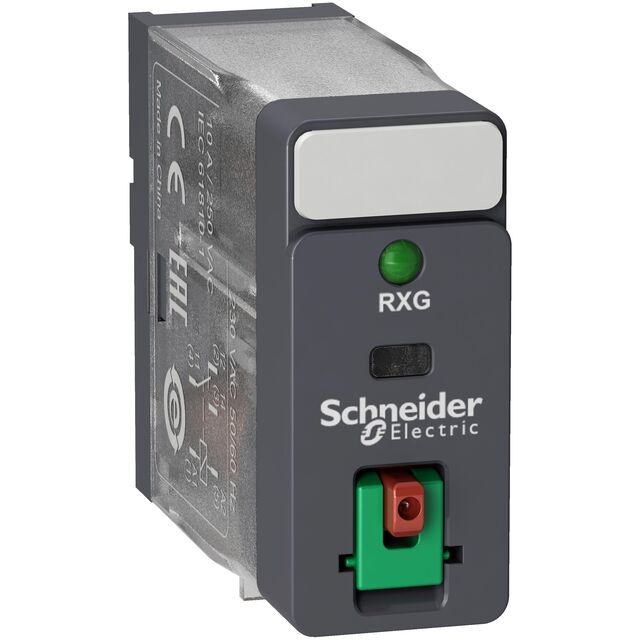

RXG12E7

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 1CO 10A@250VAC 48VAC COIL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RXG12E7

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 1CO 10A@250VAC 48VAC COIL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RXG12E7

Approval Agency	UL, CE, DNV-GL, EAC, CSA
Coil Current	43.6 mA
Coil Insulation	Class F
Coil Type	Non Latching
Coil Voltage	48 VAC/DC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	10 A
Features	Test Button, Lighted Indicator
Load - Max Switching	2500 VA, 300 W
Mounting Type	Socketable
Must Operate Voltage	38.4 VAC
Must Release Voltage	14.4 VAC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In

RXG12 Series

Part	Switching Voltage [Max]	Must Release Voltage	Contact Rating (Current)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Features	Coil Insulation	Relay Type	Coil Resistance	Operate Time	Mounting Type	Approval Agency	Load - Max Switching	Coil Type	Contact Material	Coil Current	Release Time	Contact Form	Coil Voltage	Must Operate Voltage
SQUARE D BY SCHNEIDER ELECTRIC RXG12RD	30 VDC 250 VAC	0.6 VDC	10 A	Plug In	-40 °C	70 °C	Lighted Indicator Test Button	Class F	General Purpose	68 Ohms	20 ms	Chassis Mount	CE CSA DNV-GL EAC UL	300 W 2500 VA	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)	88.2 mA	20 ms	SPDT (1 Form C)
SQUARE D BY SCHNEIDER ELECTRIC RXG12B7	30 VDC 250 VAC	7.2 VAC	10 A	Plug In	-40 °C	70 °C	Lighted Indicator Test Button	Class F	General Purpose	260 Ohms	20 ms	Socketable	CE CSA DNV-GL EAC UL	300 W 2500 VA	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)	92.3 mA	20 ms	SPDT (1 Form C)	24 VAC	19.2 VAC
SQUARE D BY SCHNEIDER ELECTRIC RXG12E7	30 VDC 250 VAC	14.4 VAC	10 A	Plug In	-40 °C	70 °C	Lighted Indicator Test Button	Class F	General Purpose		20 ms	Socketable	CE CSA DNV-GL EAC UL	300 W 2500 VA	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)	43.6 mA	20 ms	SPDT (1 Form C)	48 VAC/DC	38.4 VAC
SQUARE D BY SCHNEIDER ELECTRIC RXG12ED	30 VDC 250 VAC	4.8 VDC	10 A	Plug In	-40 °C	70 °C	Lighted Indicator Test Button	Class F	General Purpose	4.4 kOhms	20 ms	Chassis Mount	CE CSA DNV-GL EAC UL	300 W 2500 VA	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)	10.9 mA	20 ms	SPDT (1 Form C)	48 VDC
SQUARE D BY SCHNEIDER ELECTRIC RXG12BD	30 VDC 250 VAC	2.4 VDC	10 A	Plug In	-40 °C	70 °C	Lighted Indicator Test Button		General Purpose		20 ms	Socketable	CE CSA DNV-GL EAC UL	300 W 2500 VA	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)		20 ms	SPDT (1 Form C)	24 VDC
SQUARE D BY SCHNEIDER ELECTRIC RXG12FD	30 VDC 250 VAC	11 VDC	10 A	Plug In	-40 °C	70 °C	Lighted Indicator Test Button	Class F	General Purpose	22.8 kOhms	20 ms	Socketable	CE CSA DNV-GL EAC UL	300 W 2500 VA	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)		20 ms	SPDT (1 Form C)	110 VDC
SQUARE D BY SCHNEIDER ELECTRIC RXG12P7	30 VDC 250 VAC	69 VAC	10 A	Plug In	-40 °C	70 °C	Lighted Indicator Test Button		General Purpose		20 ms	Socketable	CE CSA DNV-GL EAC UL	300 W 2500 VA	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)		20 ms	SPDT (1 Form C)	230 VAC	184 VAC
SQUARE D BY SCHNEIDER ELECTRIC RXG12F7	30 VDC 250 VAC	36 VAC	10 A	Plug In	-40 °C	70 °C	Lighted Indicator Test Button		General Purpose		20 ms	Socketable	CE CSA DNV-GL EAC UL	300 W 2500 VA	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)		20 ms	SPDT (1 Form C)	120 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 19.31

Description

General part information

RXG12 Series

General Purpose Relay SPDT (1 Form C) 48VAC Coil Socketable
