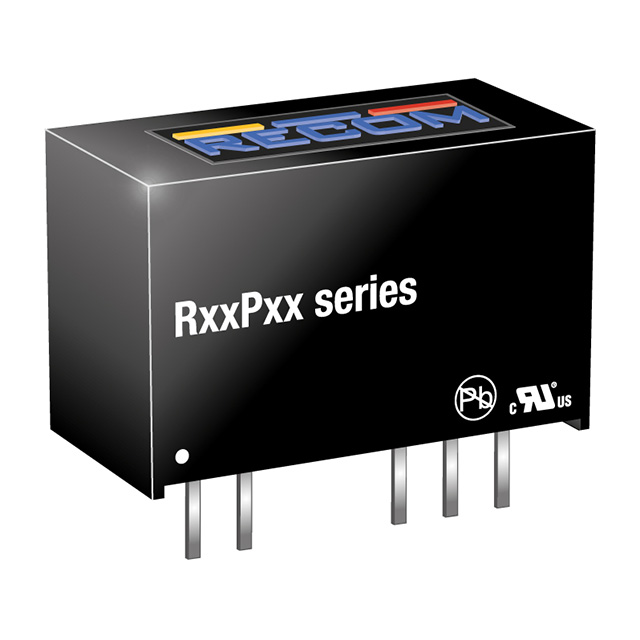

R09P3.3S/X2

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 09VIN 3.3VOUT ALT PINOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

R09P3.3S/X2

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 09VIN 3.3VOUT ALT PINOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R09P3.3S/X2

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	303 mA
Efficiency	70 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 4 Leads
Type	Isolated Module
Voltage - Input (Max) [Max]	9.9 V
Voltage - Input (Min) [Min]	8.1 V
Voltage - Isolation	6.4 kV
Voltage - Output 1	3.3 V

R05P1509 Series

Isolated DC/DC Converters - Through Hole 1W 24VIN 12VOUT CONT SHORT CIR PRTCT

...

Part	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Package / Case	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Min) [Min]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Input (Max) [Max]	Mounting Type	Applications	Current - Output (Max)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 2
RECOM Power R09P05S/P/X2	1	200 mA	75 %	7-SIP Module 4 Leads	5 V	6.4 kV	8.1 V	SCP	90 °C	-40 °C	Isolated Module	9.9 V	Through Hole	ITE (Commercial) Medical
RECOM Power R24P05S/X2	1	200 mA	75 %	7-SIP Module 4 Leads	5 V	6.4 kV	21.6 V	SCP	90 °C	-40 °C	Isolated Module	26.4 V	Through Hole	ITE (Commercial) Medical
RECOM Power R24P09D/P	2		75 %	7-SIP Module 5 Leads	9 V	6.4 kV	21.6 V	SCP	90 °C	-40 °C	Isolated Module	26.4 V	Through Hole	ITE (Commercial) Medical	55 mA	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	-9 V
RECOM Power R09P09D/P	2		75 %	7-SIP Module 5 Leads	9 V	6.4 kV	8.1 V	SCP	90 °C	-40 °C	Isolated Module	9.9 V	Through Hole	ITE (Commercial) Medical	55 mA	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	-9 V
RECOM Power R24P12S/X2	1	84 mA	75 %	7-SIP Module 4 Leads	12 V	6.4 kV	21.6 V	SCP	90 °C	-40 °C	Isolated Module	26.4 V	Through Hole	ITE (Commercial) Medical
RECOM Power R09P12S/X2	1	84 mA	75 %	7-SIP Module 4 Leads	12 V	6.4 kV	8.1 V	SCP	90 °C	-40 °C	Isolated Module	9.9 V	Through Hole	ITE (Commercial) Medical
RECOM Power R09P3.3S/X2	1	303 mA	70 %	7-SIP Module 4 Leads	3.3 V	6.4 kV	8.1 V	SCP	90 °C	-40 °C	Isolated Module	9.9 V	Through Hole	ITE (Commercial) Medical
RECOM Power R12P09D	2		75 %	7-SIP Module 5 Leads	9 V	6.4 kV	10.8 V	SCP	90 °C	-40 °C	Isolated Module	13.2 V	Through Hole	ITE (Commercial) Medical	55 mA	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	-9 V
RECOM Power R15P05S	1	200 mA	75 %	7-SIP Module 4 Leads	5 V	6.4 kV	13.5 V	SCP	90 °C	-40 °C	Isolated Module	16.5 V	Through Hole	ITE (Commercial) Medical		0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm
RECOM Power R05P15S/P/R6.4	1	66 mA	83 %	7-SIP Module 4 Leads	15 V	6.4 kV	4.5 V	SCP	85 °C	-40 °C	Isolated Module	5.5 V	Through Hole	ITE (Commercial) Medical		0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	25	$ 13.25
Sager	N/A	1	$ 13.66
		5	$ 13.23
		10	$ 12.60
		25	$ 12.25
		50	$ 12.06
		100	$ 11.71
		250	$ 10.94

Description

General part information

R05P1509 Series

Isolated DC/DC Converters - Through Hole 1W 24VIN 12VOUT CONT SHORT CIR PRTCT

Documents

Technical documentation and resources

Datasheet

Document
